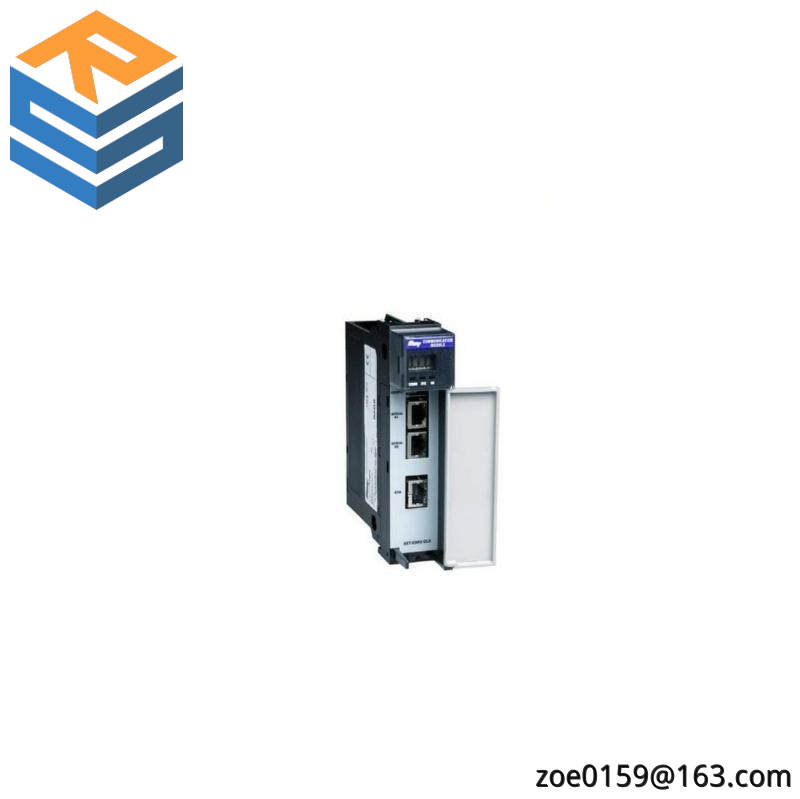

Woodhead SST-SR4-CLX Backplane Module

Type:Backplane Module

Model Number:SST-SR4-CLX

Manufacturer:Woodhead

Operating Temperature:-40°F to 185°F (-40°C to 85°C)

Input Voltage:DC 24V

Current Consumption:Up to 1A

Communication Protocol:Modbus RTU

Mounting Type:Panel Mount

Connection Type:Spring Clamp

Material:Aluminum Alloy

Dimensions:145mm x 53mm x 22mm

Weight:0.3kg

    This Woodhead SST-SR4-CLX Backplane Module is designed to elevate the efficiency of industrial control systems with its robust construction and high-performance capabilities. It seamlessly integrates with a wide range of industrial control panels, ensuring seamless operation under extreme environmental conditions.

    Featuring an advanced M12 connector system, this module supports a variety of devices and ensures reliable data transfer. With its compact design, it optimizes space utilization on control panels without compromising functionality.

    Engineered for durability, the SST-SR4-CLX is rated IP67, providing excellent protection against dust and water ingress, making it suitable for harsh industrial environments. It operates within a temperature range from -40°C to +85°C, ensuring consistent performance throughout various operational scenarios.

    The module is equipped with a high electrical rating, supporting a maximum of 24V DC and capable of handling up to 2A current per port. This feature enables efficient power distribution and supports the needs of modern industrial applications.

    Crafted from high-grade aluminum alloy, the Woodhead SST-SR4-CLX boasts a lightweight yet sturdy construction. Its dimensions of 140mm x 72mm x 25mm make it easy to fit into tight spaces, enhancing flexibility in installation. The total weight of 250g contributes to its ease of handling and reduces strain on the control panel’s mounting structure.
