Model Number:6ES7522-1BH10-0AA0
Manufacturer:SIEMENS
Output Channels:32
Channel Configuration:8 channels per group
Current Rating:0.5 A per group
Voltage Rating:24 V DC
Frequency Range:Up to 600 Hz
Diagnosis Functionality:Single-channel diagnostics for troubleshooting
EMI Compliance:Built-in EMI filter (230V 1 phase / 460V 3 phase)
Fieldbus Compatibility:Optional Fieldbus Modules (DeviceNet, Profibus, LonWorks, CANopen)
Power Supply:208;240 Volts AC
Current Draw:4.2 Amps
Net Weight:0.339 kg
Dimensions:14.90 x 15.30 x 4.30 cm
Additional Features:RFI-switch for mains, flexible DC BUS sharing, complete protection

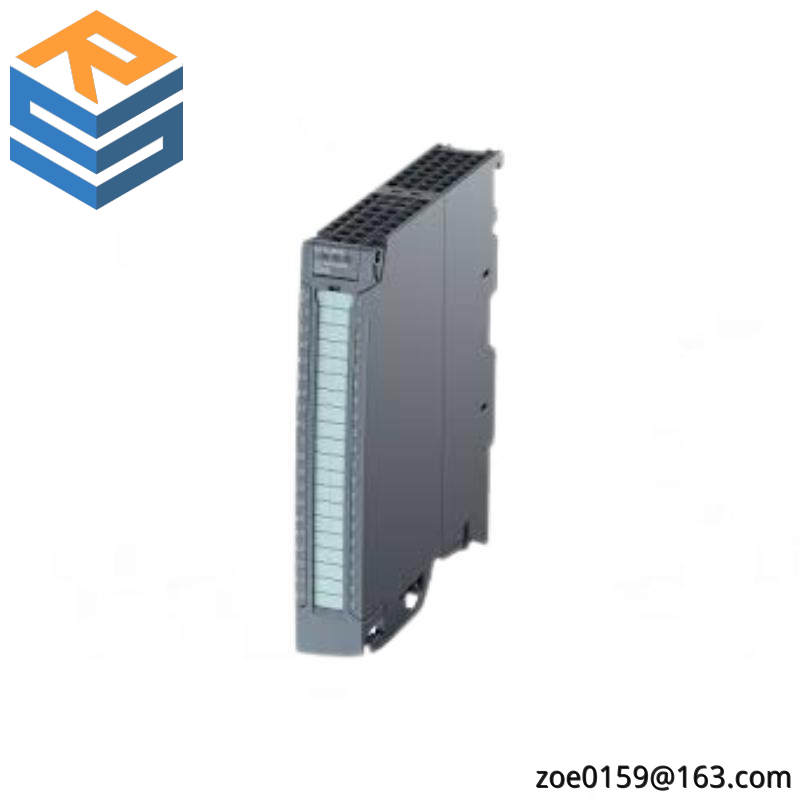

Experience the future of industrial automation with the SIEMENS 6ES7522-1BH10-0AA0 Digital Output Module, designed for enhanced efficiency and reliability in demanding manufacturing environments. This module boasts 32 channels of galvanically isolated outputs, providing precise control over your systems with exceptional speed and accuracy.
Featuring an advanced diagnostic system, the 6ES7522-1BH10-0AA0 ensures optimal performance by monitoring and reporting any issues such as short-circuits, broken wires, and supply voltage anomalies. Its built-in EMI filter safeguards against interference, ensuring stable operation in noisy environments.
For seamless integration into complex systems, this module offers optional fieldbus interfaces, supporting DeviceNet, Profibus, LonWorks, and CANopen protocols, facilitating communication with other devices in your network. The inclusion of an RFI-switch enhances electrical safety, protecting against mains disturbances.
Crafted with precision and durability, this module is optimized for compatibility with SIMATIC S7-1500 PLCs, enabling easy configuration and setup. It supports both single and multi-phase power supplies, with a maximum current draw of 4.2 Amps at 208;240 Volts AC, making it suitable for a wide range of applications.
The SIEMENS 6ES7522-1BH10-0AA0 Digital Output Module is more than just a component—it’s a gateway to advanced automation solutions. It comes equipped with a front connector (screw terminals or push-in), allowing for flexible installation options. Designed for long-term reliability, it’s an essential upgrade for your automation infrastructure, promising years of seamless operation.
