Core Processing Speed:Up to 1 MHz
Memory Capacity:32 Kbytes
Input/Output Channels:16 Digital Inputs, 16 Digital Outputs
Analog Input/Output:4 Analog Inputs, 1 Analog Output
Power Supply:Integrated 24 V DC power supply
Operating Voltage:85-264 V AC, 47-63 Hz
Communication Interfaces:MPI interface, programmable
Environmental Conditions:Operating temperature -10°C to +55°C, storage temperature -40°C to +85°C

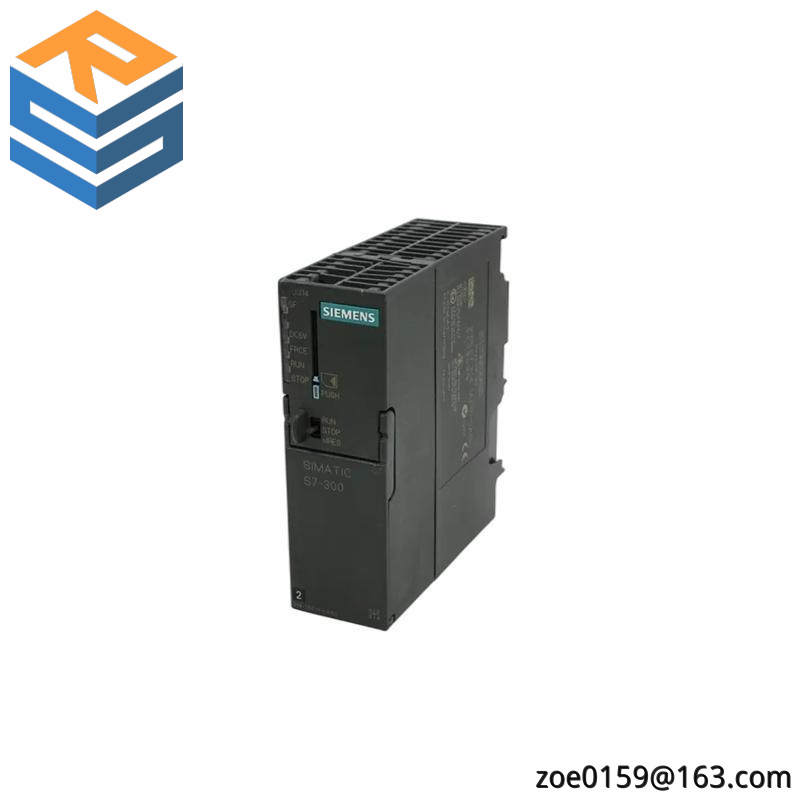

The Siemens 6ES7314-1AF11-0AB0 CPU Module is a robust, compact design that seamlessly integrates into existing SIMATIC S7-300 systems, ensuring minimal disruption during installation and maintenance. Its versatile interface capabilities allow for seamless communication with various field devices and higher-level systems, enhancing system interoperability.
Equipped with a built-in 24V DC power supply, this CPU module is self-contained and requires no external power supply for its auxiliary functions, reducing installation complexity and cost. The integrated MPI (Multiprotocol Interface) provides direct access to programming and diagnostic tools, streamlining the setup and troubleshooting processes.
With a generous 32Kbyte working memory, the module offers ample space for storing user programs and system data, supporting complex control logic and algorithms without compromise. Its temperature-resistant design ensures reliable operation across a wide range of industrial environments, from freezing cold to hot and dusty conditions.
The inclusion of 16 digital inputs (DI) and 16 digital outputs (DO) allows for direct connection to various sensors and actuators, enabling precise control over machinery and processes. The 4 analog inputs (AI) and 1 analog output (AO) facilitate measurement and control of physical quantities such as temperature, pressure, and flow rate.
For enhanced security and reliability, the CPU module supports advanced error detection and correction mechanisms, ensuring uninterrupted operation even under challenging conditions. Additionally, its modular architecture facilitates easy expansion and upgrading, making it a scalable solution for growing automation needs.
