Number of Inputs (DI):16
Voltage Range (DI):24V DC
Current Rating (DI):Sink/Sourced
Number of Outputs (DO):16
Voltage Range (DO):24V DC
Current Rating (DO):0.75A/point
Module Compatibility:S7-22X CPUs
Relay Configuration:Relay
Operating Voltage:5-30V DC
Operating Frequency:Up to 1 kHz
Environmental Conditions:Temperature range -25°C to +60°C
Dimensions (WxDxH):100mm x 90mm x 35mm
Weight:0.2kg
Mounting Type:Panel Mount

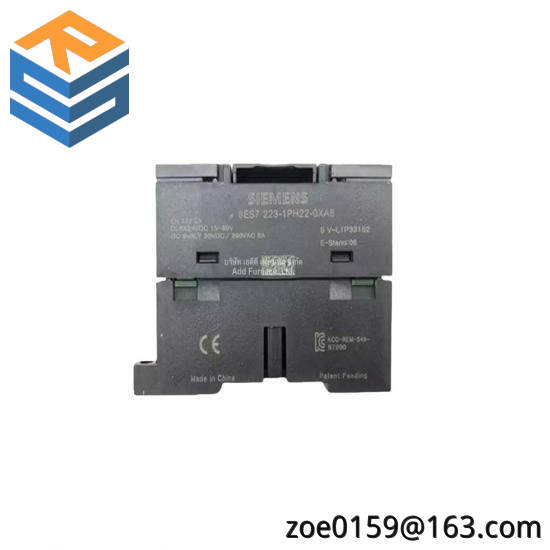

The Siemens 6ES7 223-1PH22-0XA8 is a robust and reliable digital I/O module designed for industrial automation environments. It offers a comprehensive set of features tailored to meet the demands of modern manufacturing processes.
Featuring 16 digital inputs (sink/sourced) capable of operating at 24V DC, this module ensures precise signal detection and response, making it ideal for control systems requiring high sensitivity and accuracy.
With 16 digital outputs also operating at 24V DC, this module provides the necessary control for actuators, solenoids, or other devices that require binary control signals. Its versatile relay configuration allows for both sourcing and sinking, providing greater flexibility in system design.
The module is specifically designed for use with S7-22X CPU systems, ensuring compatibility and seamless integration. This compatibility simplifies the setup process and minimizes integration time, making it an excellent choice for projects requiring quick deployment.
Engineered to operate within a temperature range of -25°C to +60°C, the Siemens 6ES7 223-1PH22-0XA8 is suitable for a wide variety of industrial environments. Its compact size and lightweight design facilitate easy installation on panel mounts, enhancing its adaptability across different applications.
Incorporating advanced technology and superior materials, this module ensures reliability and longevity in harsh industrial settings. It is backed by Siemens’ commitment to quality and customer support, providing users with peace of mind and access to comprehensive documentation and resources.
