Processor Type:Advanced Microcontroller
Operating Voltage:12V – 24V DC
Current Consumption:≤ 50mA at nominal voltage
Communication Interface:RS-485, Modbus RTU
Input/Output Channels:24 Input Channels, 16 Output Channels
Operating Temperature Range:-20°C to +70°C
Memory Capacity:2K Bytes RAM, 8K Bytes ROM
Relay Outputs:5V, 24V, 3A per channel

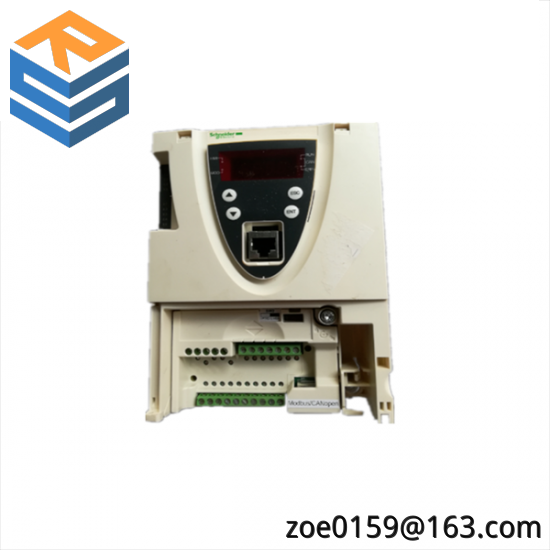

The Schneider VX4A71100 Industrial Control Board is engineered to handle demanding industrial applications with its robust design and high-performance capabilities. Its advanced microcontroller ensures smooth operation under various environmental conditions, making it suitable for use in manufacturing, logistics, and energy sectors.
Featuring a wide operating voltage range and low current consumption, this control board efficiently operates within different industrial environments without compromising on performance. The RS-485 communication interface with Modbus RTU protocol enables seamless data exchange, enhancing system integration and control.
With 24 input channels capable of detecting and responding to various signals and 16 output channels for actuation, the VX4A71100 provides comprehensive control over machinery and processes. The board’s memory capacity supports storing critical data and program instructions, ensuring smooth operation even in complex systems.
Operating within an extensive temperature range from -20°C to +70°C, this control board is built to withstand harsh industrial conditions. Its durability and reliability make it an ideal choice for applications requiring continuous operation without frequent maintenance interruptions.
Equipped with relay outputs rated at 5V, 24V, and capable of delivering up to 3A per channel, the Schneider VX4A71100 offers versatile control options for motors, solenoids, and other power devices. This feature enhances the board’s utility across a broad spectrum of industrial applications, contributing to improved efficiency and productivity.
