Product Type:ASCII
Communication Protocol:Modbus Serial
Compatibility:CompactLogix processors with 1769 I/O bus capability, version 16 and above
I/O Size:0/120/240 – 16 bit integers
Communication Parameters:Baud Rate: 110 to 115K baud, Stop Bits: 1 or 2, Data size: 7 or 8 bits, Parity: None, Even, Odd, RTS Timing delays: 0 to 65535 milliseconds
Floating Point Data Support:Movement supported for configurable Enron, Daniel®, and other implementations
Module Model:MVI69L-MBTCP
Category:Prosoft PLC
Manufacturing Technology:Licensed Backplane Technology
Data Transfer Speed:High-speed between MVI69 module and CompactLogix / MicroLogix processor
Installation Compatibility:Installs as a Generic 1769 module, includes sample ladder logic
Viewing Module Data:Data and status viewable in RSLogix 5000 controller tags and UDTs
Protocol Interface:Modbus Master/Slave protocol interface
Emulation Capability:Emulate Modbus Master or slave device on each individually-configurable application port

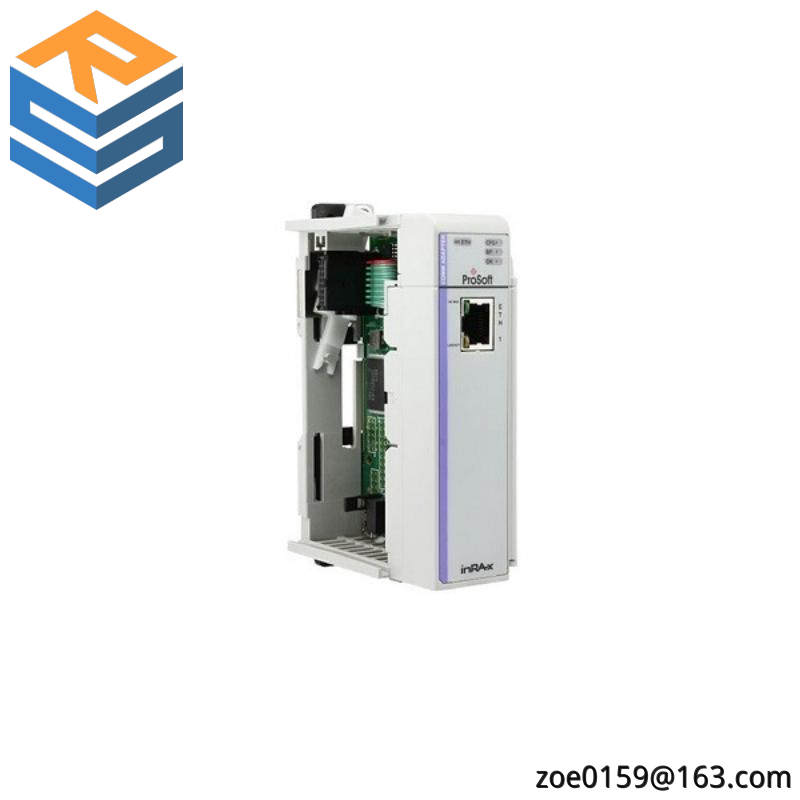

The Prosoft MVI69L-MBTCP is designed to enhance the connectivity between Prosoft PLC systems and various external devices through its robust Modbus Serial communication capabilities. This module is compatible with CompactLogix processors, ensuring compatibility across multiple automation platforms.
Featuring a wide range of communication parameters, it supports flexible settings for baud rates, stop bits, data sizes, and parity checks, offering adaptability to diverse industrial environments. Its compatibility extends to both 16-bit integer I/O sizes, catering to precise data handling requirements.
With support for floating-point data movement and customizable configurations for Enron, Daniel®, and other implementations, the MVI69L-MBTCP ensures seamless data processing. The inclusion of sample ladder logic facilitates easy installation and quick setup processes.
Equipped with high-speed data transfer technology, this module ensures efficient communication between the MVI69 module and CompactLogix / MicroLogix processors. The ability to view module data and status directly in RSLogix 5000 controller tags and UDTs empowers users with real-time insights into system performance.
The Modbus Master/Slave protocol interface allows for versatile communication scenarios, enabling the module to function as either a master or slave device according to the application’s needs. This feature enhances integration and simplifies complex network configurations in industrial automation projects.
