Compatibility:Backplane compatible with 1769 series
Designation:Recognized as Input/Output module
Processor Memory Access:Access to processor memory for efficient data exchange
Data Transfer Method:Ladder Logic for module memory and processor controller tags
Configuration Data Source:Obtained from ProSoft Configuration Builder Software
Network Support:Supports complete Master specifications per IEC 61158
Acyclic Parameter Transfer:Class 1 or Class 2 DPV1 services for acyclic parameter data
ControlLogix Processor Interface:Acts as bridge between PROFIBUS network and ControlLogix processor
Data Transfer Asynchronicity:Asynchronous data transfer for improved performance

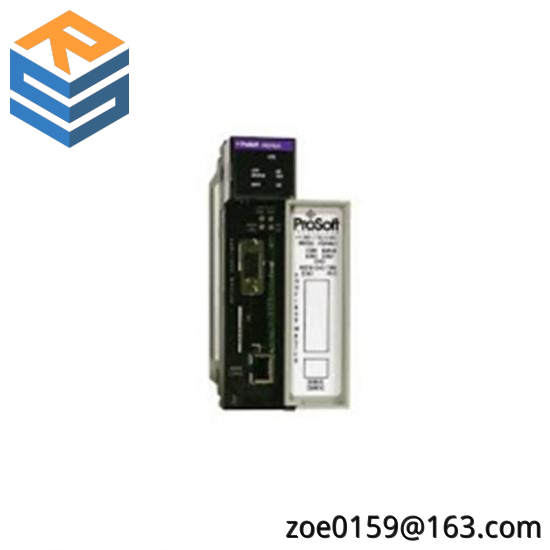

The ProSoft MVI56-PDPMV1 module is meticulously designed to optimize communication within industrial environments, ensuring reliability and efficiency in data exchange between the PROFIBUS network and ControlLogix processors.
With its single-slot design, it seamlessly integrates into existing 1769 backplane systems, offering an expanded footprint without compromising system integrity.
As an Input/Output module, it grants direct access to processor memory, facilitating rapid data transfer between the module and the central processing unit, thereby enhancing operational efficiency.
Leveraging Ladder Logic, the module enables seamless interaction between the internal memory and processor controller tags, providing a user-friendly interface for programming and monitoring.
Configurable through ProSoft Configuration Builder Software, this module allows for tailored setup of PROFIBUS networks, accommodating diverse automation requirements and ensuring compatibility with various devices.
