Product Type:Network Interface Module
Model ID:MVI56-MNET
Extended Product Type:ASCII
Backward Compatibility:MVI56-MNETR versions
Ethernet Speed:10/100 Mbps
Communication Protocol:RSLogix 5000
Server Capability:Multi-server applications
Client/Servers:Up to 30 clients and 20 servers
Impact on Communications:Minimal during server device failure
Configuration Ease:IP address for easy setup
Memory Mapping:Up to 5000 16-bit registers
CIPconnect Support:Network configuration and diagnostics
Remote Implementations:Optimized for remote rack settings
Certification:Certified product
Operating Voltage:220 V
Output Frequency:30 kHz

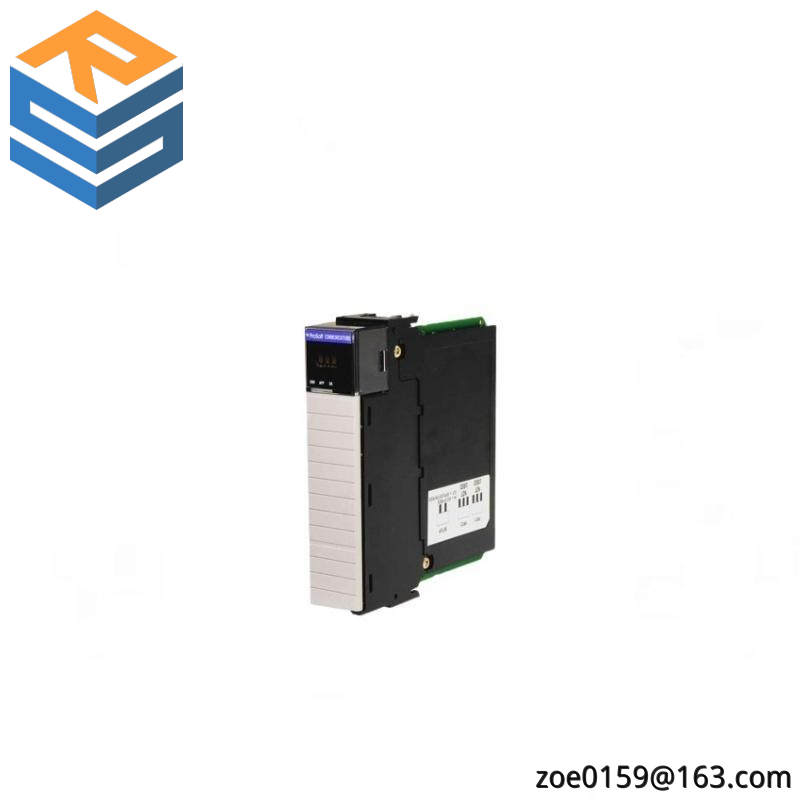

The Prosoft MVI56-MNET Network Interface Module is designed for seamless integration into industrial control systems, ensuring high-speed, reliable communication between your ControlLogix processor and external devices. This module supports up to 30 clients and 20 servers, making it an ideal choice for complex, multi-server environments.
With advanced features like user-definable module data memory mapping up to 5000, 16-bit registers, this module ensures efficient data management. Its backward compatibility with previous versions and support for 10/100 Mbps auto crossover detection on Ethernet configuration and application ports make it adaptable to various network setups.
The server capability of the MVI56-MNET module enables direct access from Human Machine Interfaces (HMIs), Supervisory Control and Data Acquisition (SCADA) systems, or Distributed Control Systems (DCS). It simplifies integration with these systems by providing access through the integrated RSLogix 5000 using an Add-On Instruction (AOI) or ladder file without requiring additional programming.
This module also boasts faster response times for multi-server applications, which enhances operational efficiency and reduces delays. It minimizes the impact on other server communications when one server device experiences downtime, ensuring system reliability and stability.
For network configuration and diagnostics monitoring, the CIPconnect-enabled feature allows the use of ControlLogix 1756-ENxT and 1756-CNB modules, enhancing troubleshooting capabilities. Additionally, the reduced I/O image size specifically optimizes remote rack implementations, making it suitable for various industrial settings.
Prosoft’s MVI56-MNET module stands out with its robust design and advanced features, making it an indispensable component in modern industrial automation systems. It offers a blend of performance, reliability, and ease of integration, ensuring that your operations run smoothly and efficiently.
