Product Type:Communication Module
Model Number:MVI56-HART
Protocol Compatibility:HART
Max Devices Per Channel:15
Master Protocol Support:Four channels
Data Transfer Rate:Up to 57.6 kbps
Power Consumption:Less than 50mA @ 24VDC
Environmental Conditions:Operating temperature: -40°C to +85°C
Storage Temperature:-40°C to +104°C
Mounting:Panel mount
Dimensions:3.25 x 5.25 x 1.0 inches (83 x 133 x 25 mm)
Weight:0.2 lbs (90 g)

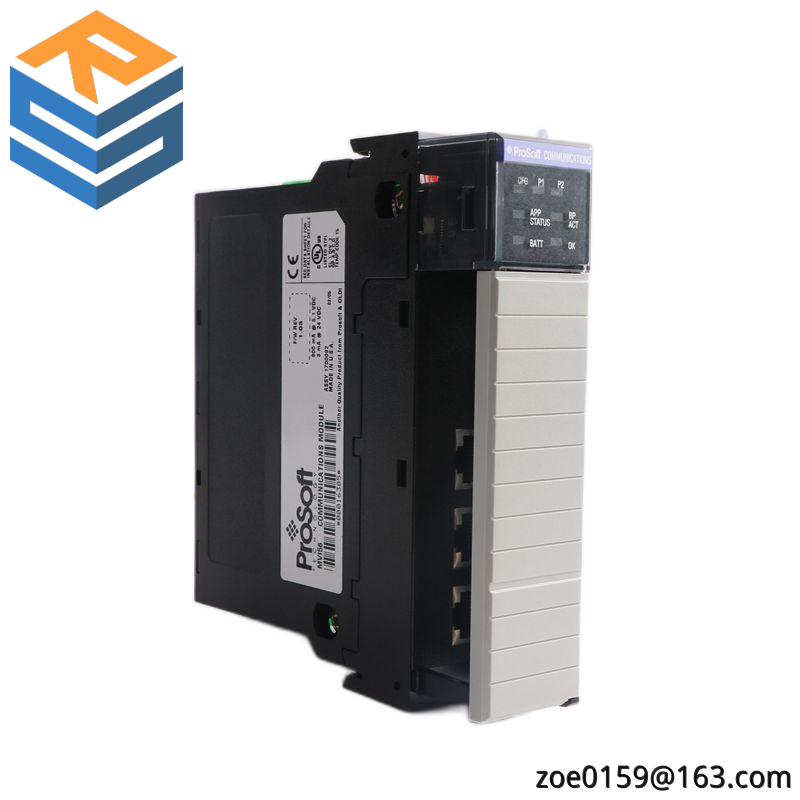

The Prosoft MVI56-HART module is engineered to enhance operational efficiency in industrial automation systems by facilitating seamless communication between Rockwell Automation ControlLogix processors and HART slave devices. With its advanced multi-drop capability, it supports up to 15 devices per HART channel, significantly expanding network capacity and reducing costs associated with traditional single-drop configurations.
This robust module offers four independent HART channels, each capable of executing master protocol commands to interface with slave devices on separate networks. This feature ensures flexibility and scalability, making it an ideal choice for complex, multi-device automation setups.
Crafted with precision, the MVI56-HART is equipped with state-of-the-art technology to ensure reliable performance across a wide range of environmental conditions. Its operation is optimized for industrial settings, withstanding extreme temperatures and humidity without compromising functionality.
Featuring low power consumption and compact dimensions, this module integrates seamlessly into existing control systems, minimizing footprint and energy usage. Its efficient design is complemented by easy installation and compatibility with industry-standard RS-485 connectivity, ensuring a smooth integration process.
Incorporating the MVI56-HART into your industrial automation strategy not only boosts efficiency but also opens up new possibilities for data-driven decision-making. By leveraging the rich capabilities of HART devices, you can gain deeper insights into operational performance, optimize maintenance schedules, and enhance overall system reliability.
