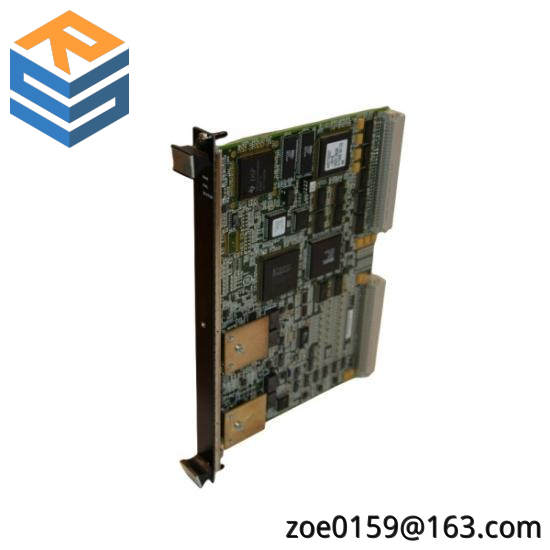

General Electric VAIC H1D IS200VAICH1DAB Analog Input/Output Board

Manufacturer:General Electric

Model Number:IS200VAICH1DAB

Series:VAIC H1D

Functional Description:Analog Input/Output Board

Functional Acronym:VAIC

PCB Coating:Conformal Coating

Functional Revision😀

Part Number:IS200VAICH1DAB

Dimensions (WxHxD):90mm x 90mm x 25mm

Operating Temperature Range:-40°C to +70°C

Input Current Range:0mA to 20mA

Output Voltage Range:0V to 10V

Power Consumption:15W

Communication Protocol:Modbus

    The General Electric VAIC H1D IS200VAICH1DAB Analog Input/Output Board is engineered for seamless integration into complex industrial control systems, offering unparalleled precision and reliability in signal processing and control tasks.

    This board is meticulously designed to handle a wide range of environmental conditions, ensuring stable operation across various industrial settings. With an operating temperature range of -40°C to +70°C and a storage temperature of -55°C to +85°C, it can withstand extreme environments without compromising performance.

    Featuring a robust VME Bus interface, the IS200VAICH1DAB board ensures high-speed data transfer, facilitating efficient communication within the system. It supports up to 16 analog input channels and four relay outputs, providing flexibility in signal processing and control applications.

    The board is equipped with a 1 kΩ input resistance and a 50 Ω output impedance, which optimizes signal integrity and minimizes signal distortion. The noise reduction capability, exceeding 90 dB, ensures minimal interference, enhancing the overall system accuracy.

    The General Electric VAIC H1D IS200VAICH1DAB Analog Input/Output Board complies with industry standards, including UL, CE, and RoHS, ensuring safety and environmental responsibility. It is a reliable choice for demanding industrial applications, offering peace of mind and superior performance.
