Type:Termination Board
Series:Mark VI
Product ID:IS200TREGH1BDB
Weight:0.24 kg
Dimensions:14.8 x 10.3 x 3.2 cm
Number of Terminal Blocks:2
Terminal Blocks Size:long solid black
Terminal Block Terminals:24 silver metallic
Jack Connector Ports:3
Connector Port Components:small pin ports
Capacitors:4, solid yellow
Capacitor Arrangement:paired near corners
Transformer Shape:square
Transformer Protection:transparent plastic, silver wire
Part Number:IS200TREGH1BDB
Module Category:GE PLC

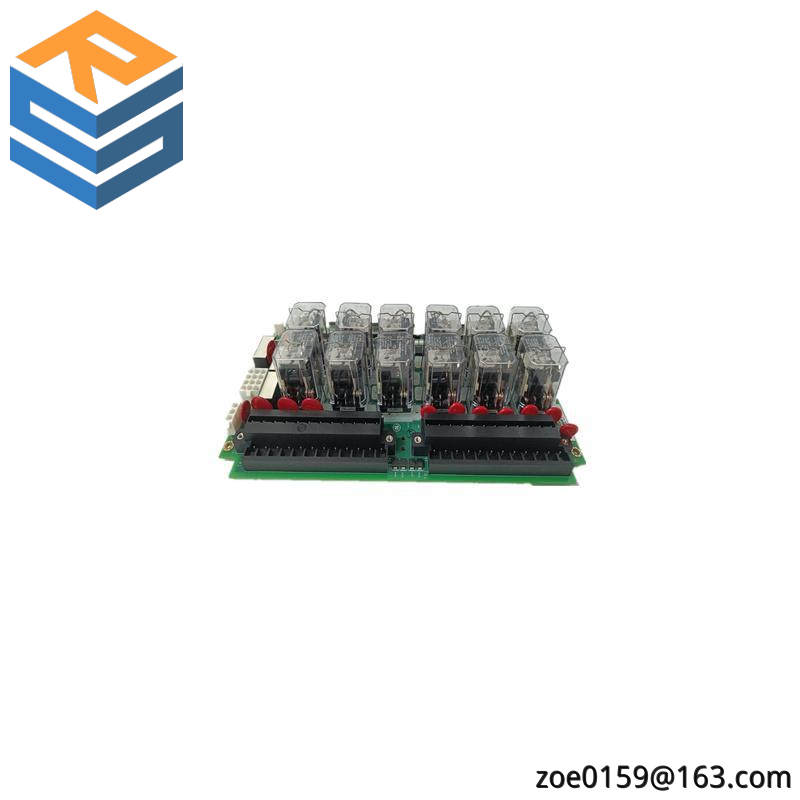

The IS200TREGH1BDB is engineered to withstand the harsh conditions typically encountered in gas and turbine operations, featuring a robust design and high-quality materials that guarantee longevity and reliability.
This board is equipped with two long terminal blocks housing 24 silver metallic terminals, arranged from top to bottom, facilitating seamless connection to critical system components.
A series of four large capacitors, shaped like rectangles and colored yellow, are strategically positioned on the right side, providing essential energy storage capabilities for rapid response during emergency shutdowns.
The inclusion of three variable resistors or potentiometers at the top right corner allows for precise adjustment of system parameters, ensuring optimal performance under various operational conditions.
Integrated with GE’s proprietary software, the IS200TREGH1BDB ensures compatibility and seamless integration with the Mark VI control system, enhancing overall efficiency and safety in industrial environments.
