Brand:GE
Model:DS3800XAIB1E1E
Category:Circuit Board
Subcategory:Industrial Control
Board Type:DS3800 Series
Dimensions:330mm x 250mm x 50mm
Weight:1.5kg
Connectors:10 Connector Ports
Test Points:10 Additional Test Points
Components:Various PCB Components including Resistors, Capacitors, Diodes
Material:Black Plastic and Silver-Gold Metal
Power Supply:AC/DC Compatibility
Operating Temperature Range:-40°C to +70°C
Compatibility:Mark IV DS3800 Systems

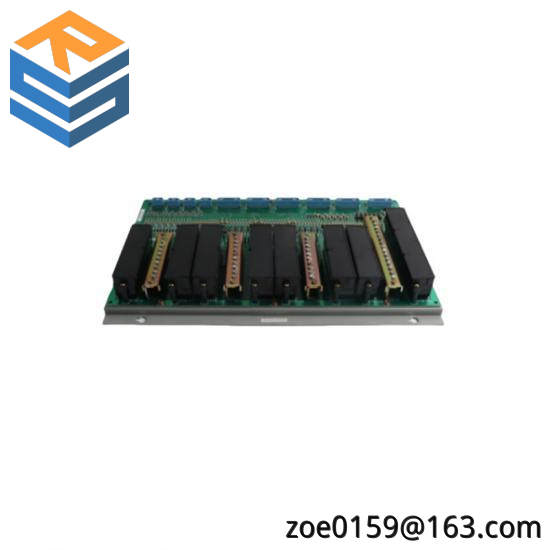

The GE DS3800XAIB1E1E Circuit Board is meticulously engineered for seamless integration into GE’s Mark IV DS3800 system, ensuring unparalleled performance and reliability in industrial control applications.
Equipped with a sophisticated layout of components, the circuit board offers a balance between robust functionality and compact design, making it an indispensable part of modern industrial machinery.
Key components are strategically placed for optimal performance, including a series of large devices aligned on one half of the board, complemented by numerous smaller resistors, capacitors, and diodes on the other side.
With a total of 16 connector ports and 10 additional test points, the DS3800XAIB1E1E ensures versatile connectivity and easy troubleshooting, facilitating quick and effective maintenance operations.
The presence of over 35 red LEDs and a small switch provides immediate visual feedback and control, enhancing operational efficiency and safety.
AX Control proudly offers the DS3800XAIB1E1E Circuit Board with a commitment to quality and customer satisfaction, backed by our knowledgeable support team ready to assist with all your automation needs.
