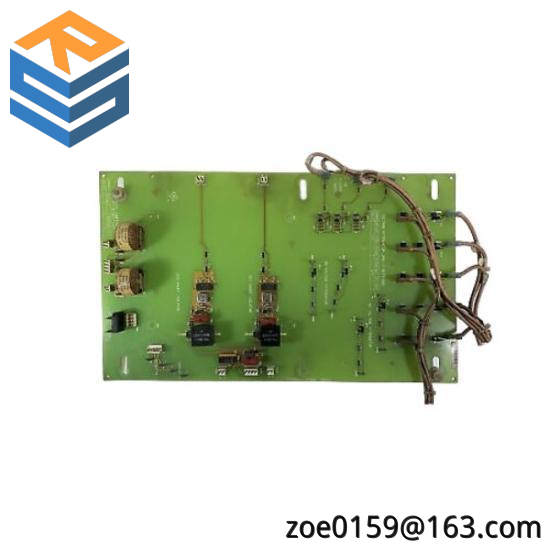

Manufacturer:General Electric
Model:DS200SHVIG1BGD
Series:Mark V
Functional Description:High Voltage Interface Board
Instruction Manual:GEI-100160
Functional Acronym:SHVI
PCB Coating:Normal Coating
Functional Revision:1B
Artwork Revision😀
Operating Voltage Range:-500 to 500 mV
Output Frequency Range:Converted to Differential Frequencies
Hardware Compatibility:Mark V Turbine Control System Series Drives
Material:Industrial-grade PCB materials
Installation Type:Standardized PCB mounting for easy integration
The GE DS200SHVIG1BGD is an essential high-voltage interface board for industrial applications, designed for efficient signal communication between the SCR bridge and power supply in GE drives.
Featuring robust construction and compatibility with the Mark V series, this board ensures reliable operation in harsh industrial environments.
With its advanced design, the DS200SHVIG1BGD provides enhanced performance and durability, making it a preferred choice for maintenance and upgrade purposes.
Crafted with precision, this board supports voltage signal processing across a wide range, facilitating seamless integration and operation within the GE drive ecosystem.
For optimal performance, the DS200SHVIG1BGD is recommended for users seeking to enhance or replace existing interface boards in their industrial control systems, ensuring uninterrupted operation and system reliability.
There are no reviews yet.
