Windings Per Phase:2
Resistant Temperature Device (RTD) Type:3 wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum
Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA
Maximum Continuous Voltage Output:273 V
Display Type:40 character Enhanced LCD
Dimensions:9”H, 7 ⅛”D, 7”W
Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

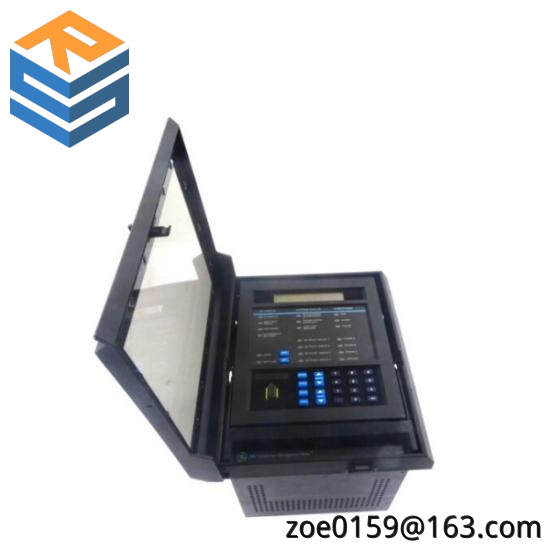

The GE SR745-W2-P5-G5-HI-A-R-T Relay is a key component in transformer protection systems, designed to provide comprehensive monitoring and control. Its advanced adaptive features enable real-time response to system events, enhancing the operational efficiency and safety of industrial power systems.
Featuring a large, enhanced 40 character display and an expanded keypad, this relay simplifies manual entry of setpoints and offers immediate alerts through its LED indicators, ensuring quick and accurate status monitoring.
Engineered for durability and performance, the relay boasts a robust case measuring 9” in height, 7” in width, and 7 ⅛” in depth, designed to fit seamlessly into standard 19” panel configurations. It supports transformer management, overexcitation protection, and frequency rate-of-change detection, crucial for maintaining optimal operation.
This relay includes an optional general-purpose transducer input, allowing for the monitoring of a user-defined quantity. This feature enhances the relay’s functionality, enabling more customized protection settings tailored to specific industrial needs.
With its proven reliability and advanced technology, the GE SR745-W2-P5-G5-HI-A-R-T Relay is a trusted choice for industries requiring high-level transformer protection, ensuring uninterrupted power supply and operational safety.
