Model Type:Advanced Power Distribution Board
Product ID:IS200JPDFG1ACC
GE Type Designation:Industrial Control
Mark VI Series Compatibility:Yes
Dimensions (WxHxD):17.5 x 6.5 x 6.5 cm
Weight:0.5 kg
Input Voltage Range:85-264V AC
Output Current Rating:10A @ 24V DC
Operating Temperature Range:-20°C to +70°C
Environmental Compliance:UL, CE, FCC certified
Number of Power Channels:8
Connection Ports:2 x RS-485, 1 x Ethernet
Power Supply Type:DC
Control System Integration:Supports Mark VI, EX2100 & EX2100e Excitation Control

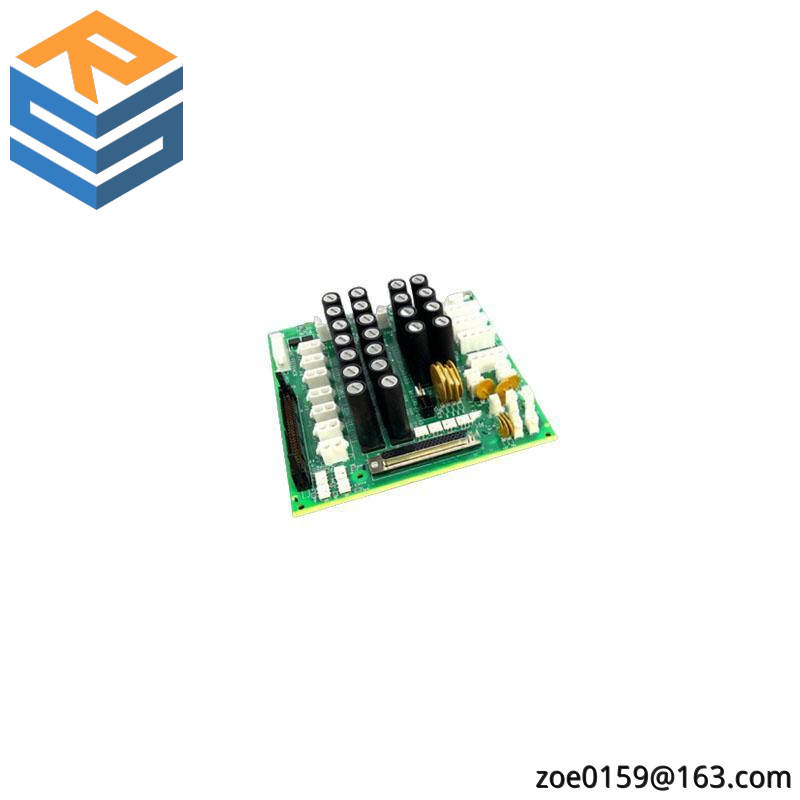

The GE IS200JPDFG1ACC Power Distribution Board is engineered for seamless integration into industrial automation systems, ensuring optimal power distribution for enhanced operational efficiency.
Featuring an almost C-like shape, this PCB is specifically designed for installation on another JPDF-abbreviated series, providing a versatile solution for various applications.
With a standard Mark VI Series assembly version, the board offers precise dimensions and weight, making it suitable for compact installations without compromising on functionality.
Populated with over ten noticeable tall black fuse components, the board employs a sophisticated voltage limitation strategy, utilizing rectifiers, diodes, capacitors, and integrated circuits to maintain stable voltage levels, thus safeguarding against potential overloads.
This product is one of the final General Electric series to utilize the renowned Speedtronic control system technology, a testament to its reliability and longevity in the field of industrial automation.
