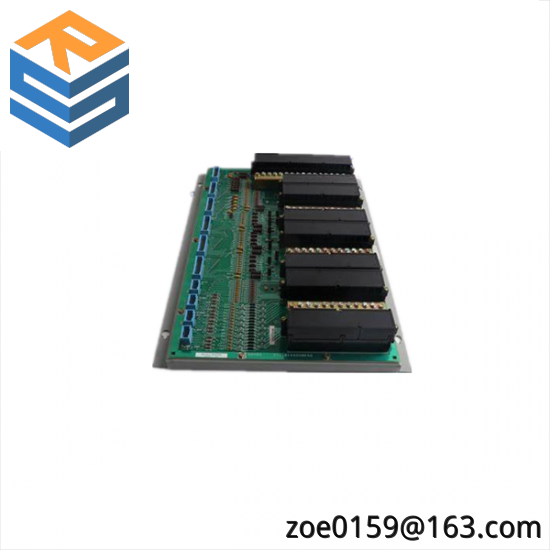

GE FANUC DS3800NTCF1C1C Thermocouple Card: Precision Temperature Measurement for Industrial Controls

Manufacturing Origin:USA

Model Code:DS3800NTCF1C1C

Type:Thermocouple Card

Series:Mark IV

Temperature Range:-65°C to +931°C (-85°F to +1706°F)

Input Resistance:200 Ohms max

Operating Voltage:DC 24V

Current Consumption:Max 50mA

Relay Outputs:2 sets of SPST relays

Power Supply:DC 24V

Board Dimensions:136mm x 105mm

Weight:Approx. 0.45kg

Redundancy:Triple-redundant backup on critical parameters

    Integrating cutting-edge technology, the GE Fanuc DS3800NTCF1C1C Thermocouple Card offers unparalleled precision in measuring and controlling temperatures within industrial machinery. This module is specifically engineered to withstand harsh operational environments, providing reliable performance in steam and gas turbine applications.

    Equipped with 13 channels for thermocouple inputs, it ensures comprehensive coverage and monitoring of critical temperatures across various components. Its robust design and high-precision accuracy enable seamless integration into complex control systems, optimizing safety protocols and enhancing operational efficiency.

    Featuring a wide operating temperature range (-40°C to +70°C), the DS3800NTCF1C1C is adaptable to a variety of industrial settings, making it a versatile choice for diverse applications. With its advanced communication interface (RS-485), the module facilitates smooth data exchange between the card and external systems, enabling real-time monitoring and control.

    The DS3800NTCF1C1C Thermocouple Card stands out with its low power consumption, ensuring minimal energy use while maintaining high performance standards. This feature is particularly advantageous in long-term operation scenarios, contributing to reduced maintenance costs and environmental impact.

    Designed for durability and reliability, the module is manufactured with high-quality materials that withstand the rigors of industrial environments. Its compatibility with triple-redundant back-ups further enhances system resilience, mitigating risks associated with single-point failures and ensuring continuous operation.
