Board Type:Termination Board
Model Number:DS200PTBAG1B
Terminal Blocks:2 with 72 signal wires each
Connectors:3 x 10-pin connectors (IDs: JJR, JJT, JJS)
Signal Wire Posts:6
Dimension:Specifically tailored for integration with GE’s Mark V series drives and exciters
Compatibility:Compatible with various GE VME boards

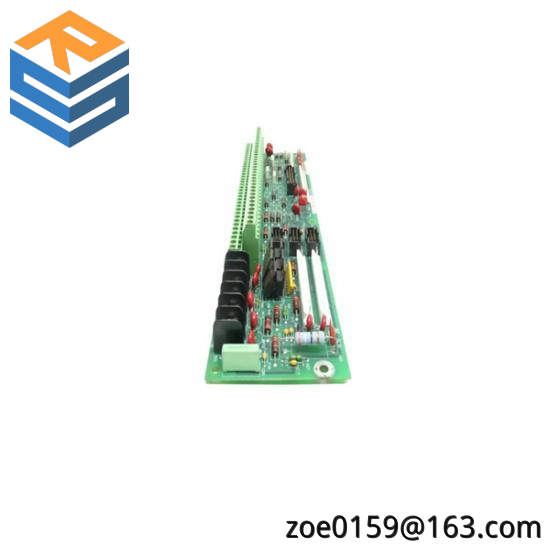

Integrating advanced hardware components, the DS200PTBAG1B Termination Board from General Electric FANUC is engineered for superior performance in industrial control systems. Its robust design ensures reliable signal transmission and termination, critical for maintaining system integrity and efficiency.
This termination board is equipped with two terminal blocks, each capable of accommodating up to 72 signal wires, providing ample flexibility for various wiring configurations. The inclusion of three 10-pin connectors allows for seamless connection with other components, enhancing system scalability and compatibility.
Crafted with precision and durability in mind, the DS200PTBAG1B utilizes high-grade aluminum alloy for its structural components, ensuring strength and longevity. The use of premium insulation materials further enhances its reliability, making it suitable for operation within a wide temperature range (-40°C to +70°C).
For optimal functionality, the board features 6 terminal posts specifically designed for signal wires. This design choice facilitates easier wiring and maintenance, streamlining the setup process and reducing downtime.
With compatibility across a range of GE drives and exciters, the DS200PTBAG1B Termination Board is a versatile addition to any industrial control system. It is an indispensable tool for manufacturers aiming to enhance their operational efficiency and reliability.
