Size:Rectangular PCB dimensions: 531mm x 126mm
Material:Rigid FR4 substrate
Electrical Components:Contains 1 small black square transistor
Terminal Connections:Twelve sets of male terminals with white plastic bases
Dimensions:Overall dimensions including connectors
Operating Voltage:Max 250V AC/DC
Operating Current:Max 5A
Operating Temperature:-40°C to +85°C
Insulation Resistance:≥ 100 MΩ @ 500V DC

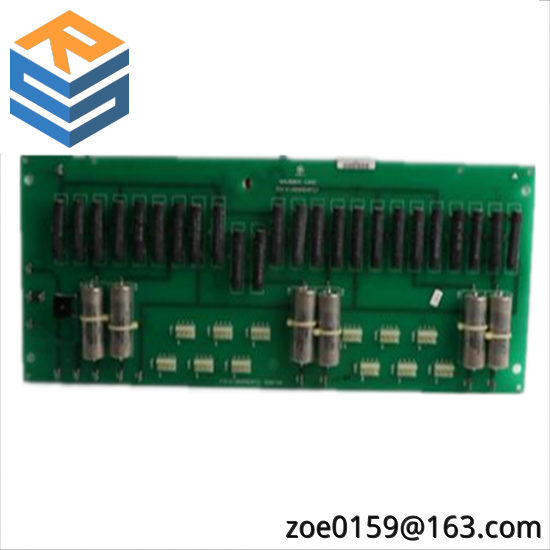

This Snubber Card Module is a critical component for enhancing the resilience of industrial control systems. Its compact design is engineered to mitigate transient voltage spikes, thereby protecting sensitive electronics and maintaining system reliability under varying operational conditions.
Equipped with eight diodes and five high-quality Sprague Vitamin Q capacitors, this module ensures efficient energy dissipation during voltage surges. The use of robust PCB materials and precise metal components guarantees durability and performance.
With a temperature range of -40°C to 70°C, this module is suitable for a wide array of industrial environments, from freezing cold storage facilities to hot manufacturing plants. Its exceptional insulation resistance and high input voltage handling capacity make it a reliable choice for demanding applications.
Installation is straightforward, thanks to the user-friendly design that aligns seamlessly with existing circuit boards. The module’s compatibility with GE Fanuc systems ensures easy integration without compromising system integrity.
Backed by General Electric’s reputation for quality and reliability, the GE Fanuc 531X126SNDAFG1 Snubber Card Module is a cost-effective solution for upgrading and maintaining the safety of industrial control systems. Trust in our commitment to innovation and excellence when choosing this essential piece of equipment for your operations.
