Manufacturer:General Electric
Series:Mark V

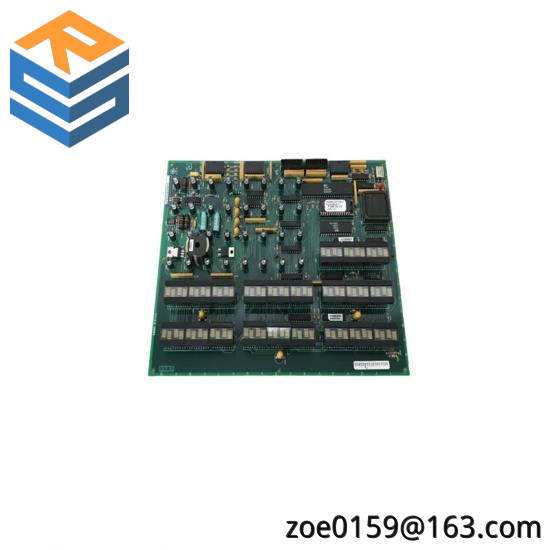

Part Number:DS200KLDCG1AAA
Functional Description:LED/Key/Display Board
LED Count:32
Display Count:21
Jumper Usage:Modifies board behavior through pin selection
Board Connector:40-pin
Coating Type:Normal
Revisions Supported:3
Backward Compatibility:1st two revisions
Assembly Type:Normal
Technical Specifications:[“Operational Voltage: 5V”,”Operating Temperature: -40°C to +70°C”,”Storage Temperature: -55°C to +85°C”,”Relative Humidity: 5% to 95% non-condensing”]
The DS200KLDCG1AAA is an essential part of the GE Mark V Turbine Control System, designed to enhance operational efficiency and safety in industrial settings.
Equipped with 32 LEDs and twenty-one 4-character displays, this board offers a comprehensive overview of system performance, making it indispensable for maintenance and monitoring tasks.
Featuring a normal coating for durability and reliability, this PCB ensures consistent performance under challenging industrial conditions.
With the option to customize behavior through a single jumper switch, users can tailor the display’s function according to specific operational needs, enhancing adaptability and flexibility.
Comprehensive documentation accompanies the DS200KLDCG1AAA, guiding users through its setup, usage, and maintenance processes, ensuring seamless integration into existing systems.
