GE 531X305NTBANG1 | Industrial Terminal Board for Drive & Exciter Cabinets

In stock

The GE 531X305NTBANG1 is a specialized NTB/3TB terminal board designed for industrial control systems, offering seamless integration, enhanced reliability, and efficient power management.

Model Number:531X305NTBANG1

OEM:GE Motors and Industrial Systems

Product Type:Terminal Board

Series:531X

Weight:0.44 kg

Power Consumption:100mA @ 5VDC / 120mA @ 24VDC

Channels:4

Regulated Supplies:5 VDC and 15 VDC

Unregulated Supplies:24 VDC or 125 VAC

Encoder Configuration:5 V and 15 V using onboard jumpers

Relay Outputs:7, comprising form A or form C

Contact Rating:120 VAC

Analog I/O Scaling:Utilizing four potentiometers

    Crafted for high-performance industrial environments, the GE 531X305NTBANG1 Terminal Board boasts a robust design optimized for seamless integration into complex control systems. Its advanced passive-interface circuitry ensures reliable signal processing and distribution, making it a critical component for maintaining operational efficiency.

    With versatile power supply capabilities, the board can generate both regulated and unregulated power, accommodating a wide range of applications from motor control to data transmission. The onboard encoder configuration via jumpers allows for precise tuning to match specific system requirements.

    Featuring seven relay outputs, the board provides flexible control over various mechanical and electrical systems. Each relay is equipped with contacts rated for 120 VAC, ensuring safety and durability in demanding industrial settings.

    The board’s inclusion of low-level analog I/O and analog tach coarse scaling offers unparalleled flexibility in data acquisition and processing. These features are further complemented by support for RS-232C and RS-422 serial interfaces, enabling seamless communication with other devices in the network.

    Engineered with meticulous attention to detail, the GE 531X305NTBANG1 Terminal Board is fabricated using premium materials for optimal performance and longevity. Its compact yet robust construction ensures easy installation and maintenance, reducing downtime and enhancing operational efficiency.

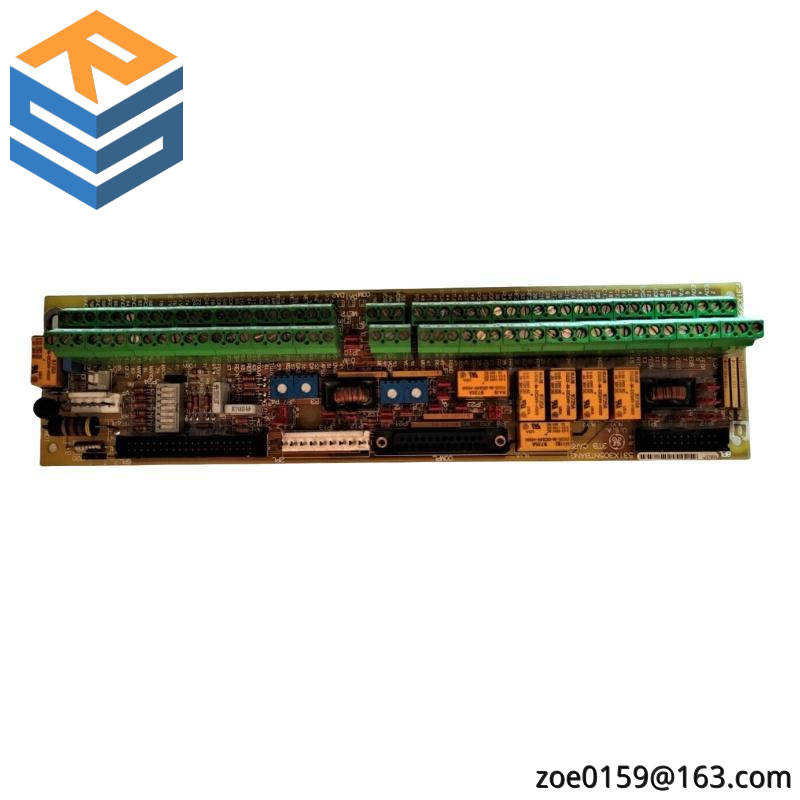

GE 531X305NTBANG1 NTB/3TB Terminal Board
