Product Type:Encoder Interface Module
Model:ISI222
Brand:BACHMANN
Counter Resolution:32-bit
Output Voltage Range:+5 V to +15 V Selectable with Jumper, 24 V Looped Through
Output Voltage:±10 V
Output Current:Max. ±2 mA
Application Frequency:1 MHz
Positioning Accuracy:32-bit Resolution
Encoder Supply:5V / 15V / 24V
Digital Outputs:2x ±10V, 14-bit Resolution
Predefined Parameters:Gate Time, Period, Velocity
Communication Interface:RS422 Level
Inputs:2x Incremental Counters A, A/B/N, Position Feedback
Trigger and Homing Support:2x Digital Inputs for Triggering and Homing

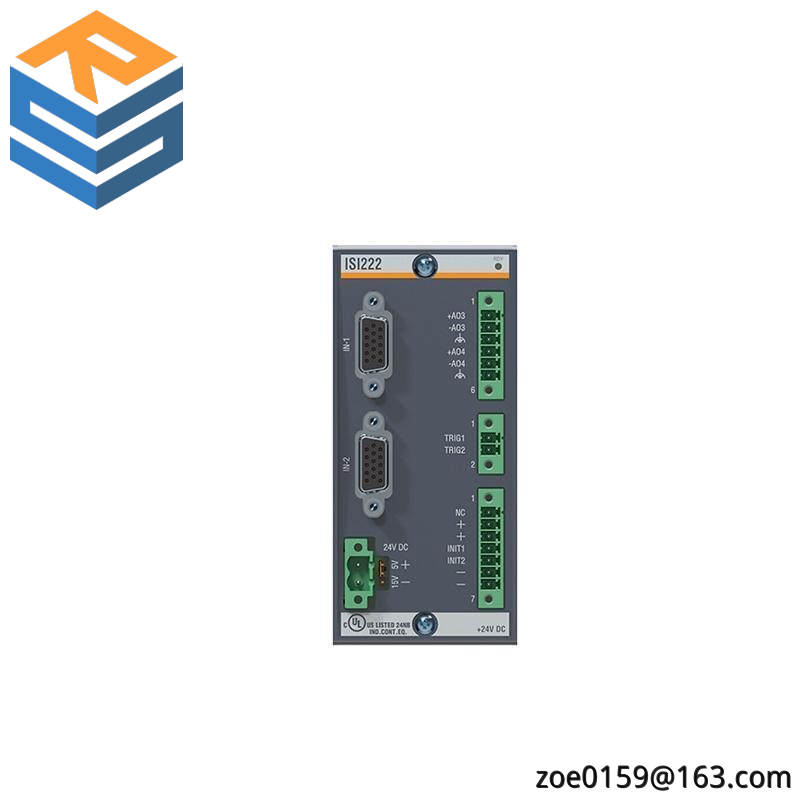

The BACHMANN ISI222 Encoder Interface Module is engineered for exceptional precision and reliability in demanding industrial settings. With a 32-bit counter resolution, it ensures ultra-accurate position measurements, essential for critical applications.
Flexible output voltage selection (5V, 15V, or 24V looped through) caters to a broad spectrum of control systems, enhancing compatibility and ease of integration.
The ±10V outputs provide robust feedback signals, enabling precise control and monitoring of mechanical components in motion.
Equipped with 2x INC/SSI inputs, the module supports high-speed data acquisition, making it suitable for fast-moving machinery and processes.
The inclusion of digital inputs (DI 24V) allows for seamless connection to external sensors and switches, enhancing system responsiveness and control capabilities.
The BACHMANN ISI222’s design is built around user convenience and efficiency, featuring synchronization and pre-SYNC support for smoother operation and enhanced system integration.
