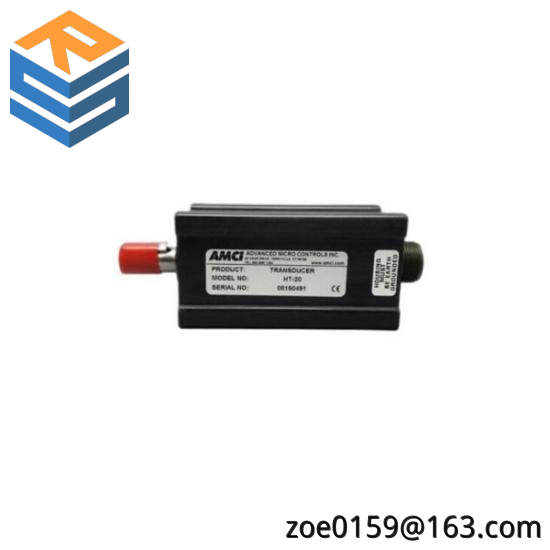

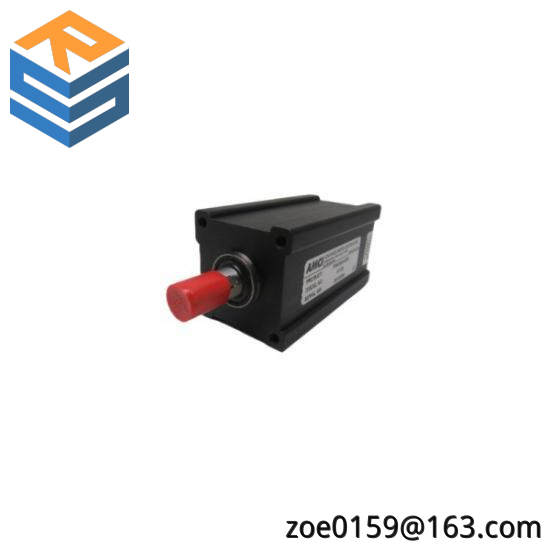

AMCI HT-20 Single-Turn Resolver Transducer

Operating Range:0 to 360 degrees

Resolution:0.001 degree

Accuracy:+/- 0.025% of reading + 0.05 degree

Input Voltage:12 to 36V DC

Output Voltage:0 to 10V DC

Operating Temperature:-40°C to 125°C

Enclosure Rating:IP67

Mounting:Panel or shaft mounting options available

    The AMCI HT-20 Single-Turn Resolver Transducer is engineered for demanding industrial environments where precision and reliability are paramount. This high-performance transducer offers unparalleled accuracy in measuring angular positions, making it ideal for applications in robotics, machine tools, and automation systems.

    With an operating temperature range from -40°C to +125°C, this device is suitable for use in a wide variety of industrial settings, ensuring continuous performance under extreme conditions.

    Featuring a compact yet robust design, the HT-20 resolver transducer incorporates advanced signal processing technology to deliver precise and consistent readings over its full 0 to 360-degree range. Its 0.001-degree resolution and ±0.025% of reading ±1 count accuracy make it an indispensable tool for applications requiring high-resolution feedback.

    The transducer is equipped with a durable M12 connector for reliable data transfer and is rated IP67 for protection against dust and water ingress, ensuring it can withstand harsh industrial environments without compromising on functionality.

    Integrating seamlessly with modern industrial control systems, the AMCI HT-20 resolver transducer supports RS-485 communication for efficient data exchange. Its 4-wire mechanical output provides a secure and straightforward connection for integration into existing automation setups.
