Brand:Allen-Bradley
Series:Kinetix 6000
Power Module:Axis Module
Input Voltage:324-528V rms, 3-phase
Nominal Voltage:360 / 480V
Nominal Input Voltage:650 Volts DC
Voltage Class:400V
Continuous Output Power:3.9 kW
Peak Current:8.6 A
Continuous Output Current:6.1 A
Efficiency:98%
Internal Shunt Resistor:115 Ohms
Heat Dissipation:57-126 Watts
Capacitance:150 μF
Capacitive Rating:200,000 A (rms) symmetrical
Bandwidth Velocity Loop:500 Hertz
Current Loop Bandwidth:1300 Hertz
PWM Frequency:8 kHz

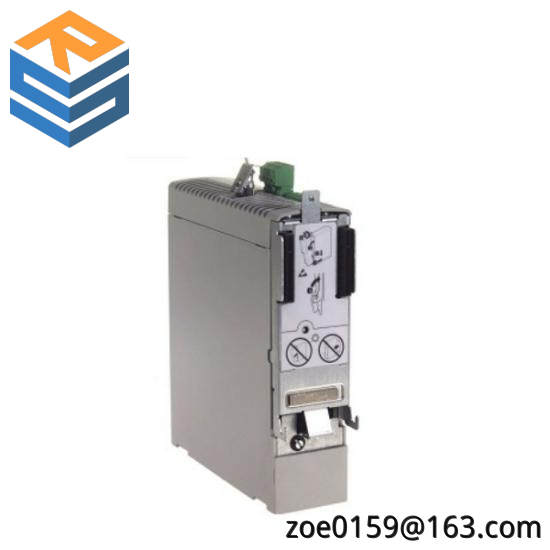

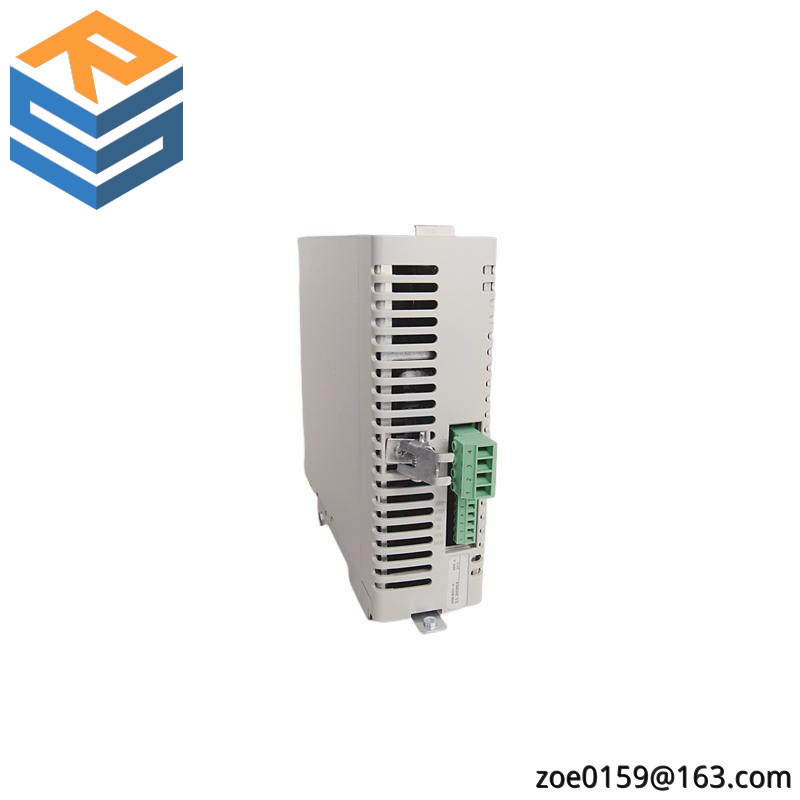

The Allen-Bradley 2094-BM01-S is a high-performance axis module designed for integration into the Kinetix 6000 Multi-Axis Drive Servo system. It offers exceptional efficiency and reliability, making it ideal for demanding industrial applications. With an integrated Safe Torque Off (STO) feature, this module ensures operator safety by automatically turning off power when necessary. The module’s robust design includes an internal shunt resistor rated at 115 Ohms, which helps in dissipating heat effectively. The built-in capacitors and PWM frequency ensure smooth and precise control over motor operations. Additionally, the module supports a wide range of input voltages and frequencies, allowing for flexible deployment across various industrial environments. Its advanced safety features, including Safe Speed monitoring and Zero Speed detection, provide comprehensive protection for both machinery and personnel. With a continuous output power of 3.9 kW and a peak current of 15.3 Amperes, this module delivers consistent and powerful performance, making it an indispensable component for modern industrial automation systems.
