Processor Type:MicroLogix 1500
User Words:7.65K
Communication Ports:DH-485, Modbus, DF1, ASCII
Expansion I/O:512
Operating Voltage Range:20 to 26.4 Volts DC
Input Power:24 Volts DC
No. of Groups:1
Output Voltage Range:20.4-26.4VDC
No. of Outputs:16
No. of Inputs:16
Voltage Category:24VDC
Mounting:DIN Rail
Network Compatibility:Ethernet (Modbus/TCP), RS-485 (Modbus/RTU)
Reliability:RoHS/WEEE Compliant

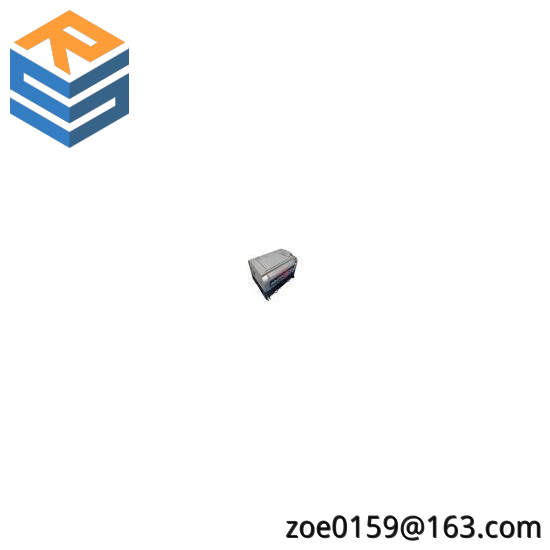

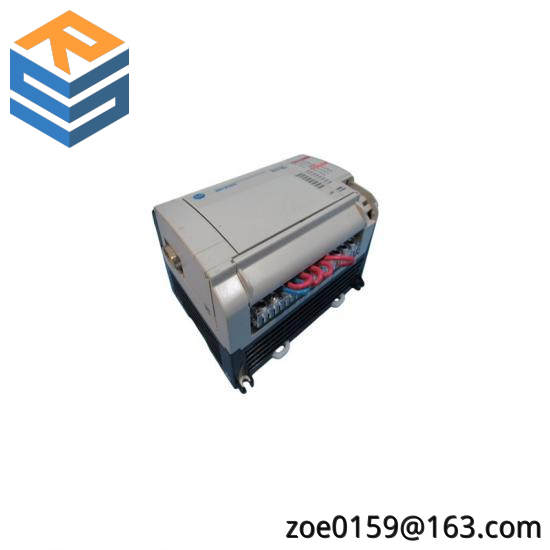

Engineered for high performance and efficiency, the Allen-Bradley 1764-24AWA MicroLogix 1500 Control Base is a cornerstone in modern industrial automation. With its compact design and extended depth capability of 65mm, it seamlessly integrates into a variety of control environments without compromising on functionality or performance.
This base unit boasts an impressive 7.65K user words, providing ample space for complex programming tasks and ensuring robust data handling. Its versatile communication ports, including Ethernet (Modbus/TCP), RS-485 (Modbus/RTU, Peer to Peer, Coordinated, PC-Link), and Open Network compatibility (PROFIBUS-DP, CC-Link, DeviceNet), facilitate seamless integration with other devices and systems, enhancing operational flexibility and connectivity.
Featuring a wide operating voltage range of 20 to 26.4 Volts DC, this base unit ensures reliable operation under varying power conditions. This feature is particularly advantageous in diverse industrial settings where power supply may fluctuate.
The inclusion of 512 expansion I/O channels allows for extensive customization and scalability, catering to the evolving needs of modern manufacturing and control systems. Whether you’re dealing with simple control loops or intricate process management, the 1764-24AWA is equipped to handle it all.
Beyond its technical prowess, the Allen-Bradley 1764-24AWA MicroLogix 1500 Control Base embodies the commitment to quality and reliability synonymous with Allen-Bradley products. Designed with durability in mind, it undergoes rigorous testing to ensure longevity and minimal maintenance requirements, making it a cost-effective choice for long-term automation projects.
