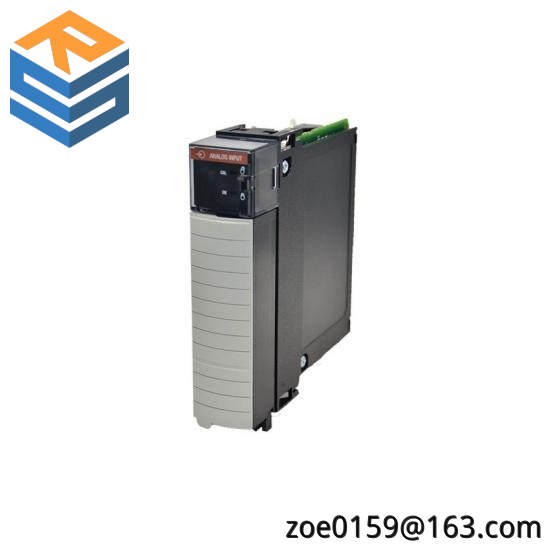

Model Type:Analog Input Module
Model Number:1756-IF16
Manufacturer:Allen-Bradley
Input Capacity:16 Points
Input Type:16 Single-Ended Inputs, 8 Differential Inputs, or 4 High Speed Differential Inputs
Supported Inputs:Current and Voltage
Operating Voltage Range:DC 12 to 24 V
Communication Interface:ControlNet
Connector Type:DB9 Female
Dimensions (WxHxD):1.8 x 3.2 x 1.2 inches
Weight:0.3 lbs
The Allen-Bradley 1756IF16 Analog Input Module is a critical component for modern industrial control systems, designed to integrate seamlessly into ControlLogix platforms. It offers 16 high-precision analog input channels, each capable of measuring voltages or currents within the specified range with exceptional accuracy.
Featuring advanced signal processing capabilities, this module ensures fast and reliable data acquisition, crucial for real-time process control and optimization. Its high sampling rate supports dynamic applications requiring rapid response times.
Engineered with robustness and reliability in mind, the 1756IF16 is suitable for harsh industrial environments, from freezing cold storage facilities to hot manufacturing floors. Its IP20 enclosure rating protects it from dust and light splashes, ensuring continuous operation under various conditions.
This module supports ControlNet communication protocol, enabling efficient data exchange between the module and other ControlLogix components. It’s compatible with Allen-Bradley’s comprehensive ecosystem of automation products, facilitating easy integration and scalability in complex systems.
Ease of installation and maintenance are key aspects of the 1756IF16. Its compact size and standard mounting holes make it quick to install on existing control panels. Additionally, its straightforward configuration and diagnostics through the ControlLogix programming environment simplify setup and troubleshooting.
