Model Type:Servo Drive Module
Manufacturer:Allen-Bradley
Model Number:1756-M02AE
Core Function:High-performance motor control
Application Area:Industrial automation
Power Supply Voltage:200 VAC
Rated Current:3 A
Maximum Rotational Speed:6000 rpm
Maximum Current:9 A
Dimension (D x H x W):297.18 x 35.56 x 175.26 mm
Weight:0.6 kg
Isolation Level:30 V (Continuous)

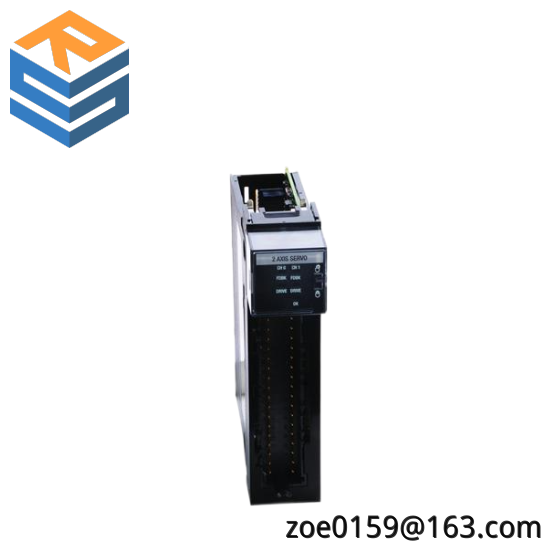

The Allen-Bradley 1756-M02AE ControlLogix Servo Drive Module is a robust, efficient, and reliable component designed to deliver precise motion control in demanding industrial environments. It integrates seamlessly into existing Allen-Bradley ControlLogix systems, offering enhanced performance through its advanced EtherCAT communication protocol.
This module is specifically engineered to handle high-torque applications, with a maximum load torque of 15Nm, making it suitable for a wide range of tasks from robotics to complex machinery operations. Its high-resolution accuracy ensures smooth and accurate positioning, critical for achieving optimal process efficiency.
Featuring an IP20 enclosure, it provides adequate protection against dust and minor splashes, ensuring reliable operation in various industrial settings. The 24V DC power supply ensures stable and consistent performance across different industrial applications.
With its compact size and efficient design, the 1756-M02AE module optimizes space usage on the control panel while providing high-power capabilities. Its compatibility with EtherCAT protocol enables fast and precise data exchange, facilitating seamless integration with other Allen-Bradley components and third-party devices.
For operators and maintenance personnel, the module includes diagnostic features that allow for quick troubleshooting and system optimization, reducing downtime and enhancing operational reliability. It is designed to withstand extreme temperatures ranging from -20°C to +55°C, ensuring robust performance in diverse environmental conditions.
