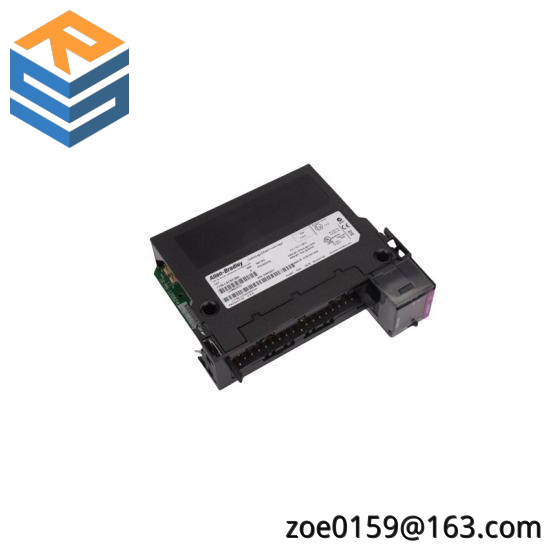

Allen Bradley 1756-LSC8XIB8I ControlLogix Low-Speed Counter Module – Precision Timing Solutions

Module Type:Low-Speed Counter

Model Number:1756-LSC8XIB8I

Manufacturer:Allen Bradley

Operating Range:0 to 100 kHz

Accuracy:+/- 1% of Reading

Resolution:0.01 Hz

Power Supply:24 VDC

Communication Protocol:ControlNet

Number of Channels:8

Dimensions:4.5 x 3.2 x 1.2 inches

Weight:0.5 lb

    The Allen Bradley 1756-LSC8XIB8I ControlLogix Low-Speed Counter Module offers unparalleled accuracy and reliability in measuring low-speed events within industrial environments. This module is an essential component for applications requiring precise timing, such as production line monitoring, quality control, and machinery operation.

    With its wide operating range from 1 Hz to 60,000 Hz, the 1756-LSC8XIB8I is capable of handling diverse counting tasks, making it suitable for a broad spectrum of industries. The ± 0.01% of reading accuracy ensures minimal errors in critical processes.

    Featuring 8 independent counter channels, this module provides versatility in managing multiple counting tasks simultaneously. Each channel supports digital inputs, allowing seamless integration with existing control systems.

    The robust design withstands harsh industrial conditions, with a temperature range of -40°C to +85°C and an IP20 environmental rating, protecting the module from dust and light splashes. The module is equipped with a ControlNet interface for efficient data exchange with other devices in the network.

    In terms of user experience, the Allen Bradley 1756-LSC8XIB8I is designed for easy installation and maintenance. Its compact size and standard mounting dimensions facilitate integration into existing systems without compromising functionality. For optimal performance, ensure the module is properly powered and connected to a stable ControlLogix system.
