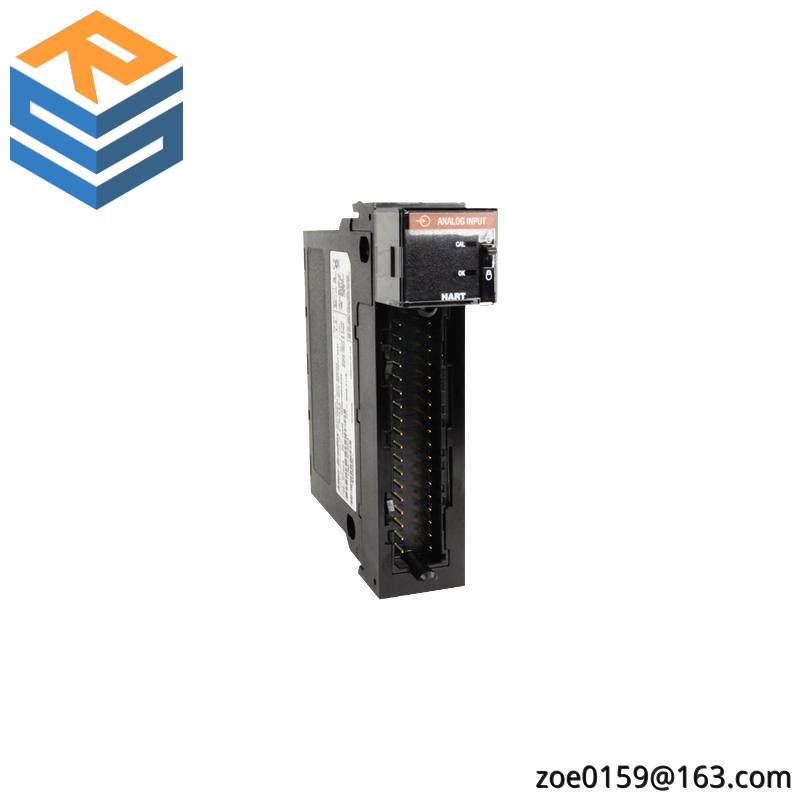

Module Type:Analog Input Module
Model Number:1756-IF16
Brand:Allen Bradley
Voltage Range:0 to 10 Vdc or 4 to 20 mA
Number of Channels:16
Resolution:12-bit
Isolated Channels:No
Connection Type:Terminal Block
Operating Temperature:-25°C to +60°C
Storage Temperature:-40°C to +85°C
Power Requirement:24VDC
Weight:0.25 kg
Dimensions:2.9 x 3.5 x 5.5 inches
The Allen Bradley 1756-IF16 Analog Input Module is a high-performance device that enables precise measurement and control in a wide range of industrial applications. Designed for durability and reliability, this module features a robust construction with a compact design, making it suitable for integration into existing or new control systems.
Key Features:
– High accuracy up to ±0.1% of full scale ensures reliable readings.
– Wide operating temperature range from -40°C to +85°C makes it ideal for harsh environments.
– Fast response time of 10 microseconds enhances system efficiency.
– 16 channels allow for extensive data acquisition capabilities.
This module supports various input ranges including ±10V, ±5V, 0-10V, and 0-5V, providing flexibility in different application scenarios. Its 12-bit resolution ensures precise signal conversion, critical for accurate monitoring and control.
Installation is straightforward with clear wiring diagrams provided in the user manual, ensuring easy setup and maintenance. The Allen Bradley 1756-IF16 Analog Input Module is a vital component for enhancing the performance of industrial control systems.
