Model Type:Communication Module
Manufacturer:Allen Bradley
Model Number:1756-CNB/A
Series:ControlLogix
Number of Channels:1
Current Rating:Drawn: 970 MA At 5.1 VDC, 1.7 MA At 24 VDC
Isolation:30 V (Continuous)
Basic Insulation Type:High
Communication Speed:10/100 Mbps
Communication Protocol:Ethernet/IP
Enclosure:Open Type
Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration:2 G
Shock:30 G
Interface:Ethernet
USB Port:Not Applicable

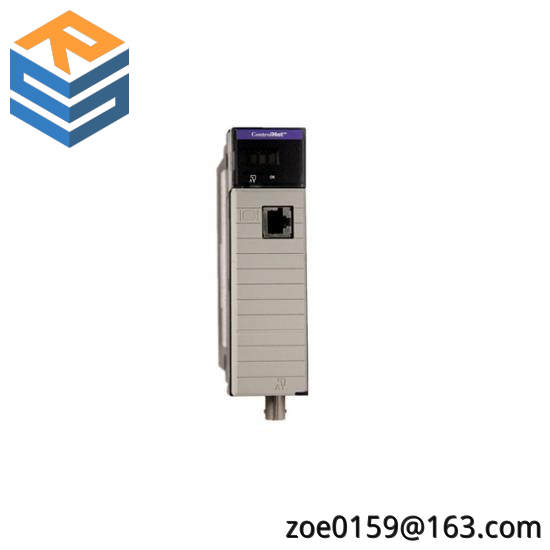

The Allen Bradley 1756-CNB/A ControlLogix Communication Module is a robust and reliable component designed for high-performance networking applications in industrial environments. This module seamlessly integrates into ControlLogix systems, enhancing communication capabilities between various devices.
With support for Ethernet/IP protocols, it ensures real-time data transfer, making it ideal for complex automation setups requiring high-speed connectivity and reliability.
Featuring an open-type enclosure, the module is suitable for diverse installation scenarios, ensuring compatibility across different manufacturing settings. Its temperature rating from -20°C to 60°C ensures stable operation under a wide range of environmental conditions.
Equipped with advanced isolation technology, the 1756-CNB/A ensures minimal signal interference, maintaining high-quality data transmission. It consumes up to 12.8 watts, making it energy-efficient even under heavy usage.
Adhering to strict environmental standards, the module is built to withstand vibration and shock, guaranteeing longevity in demanding industrial environments. This makes it a preferred choice for manufacturers looking to optimize their production lines with advanced communication solutions.
