Module Type:Discrete Output
Nominal Input Voltage:24VDC
Input Voltage Range:10-50 VDC
Backplane Current Consumption:0.270 A
Voltage Range:10-50 Volts DC
Sink Outputs:16
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating:Backplane: 0.28 A, Continuous Current Per Output: 0.25 A at 60°C, Continuous Current Per Module: 4 A at 60°C
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% humidity

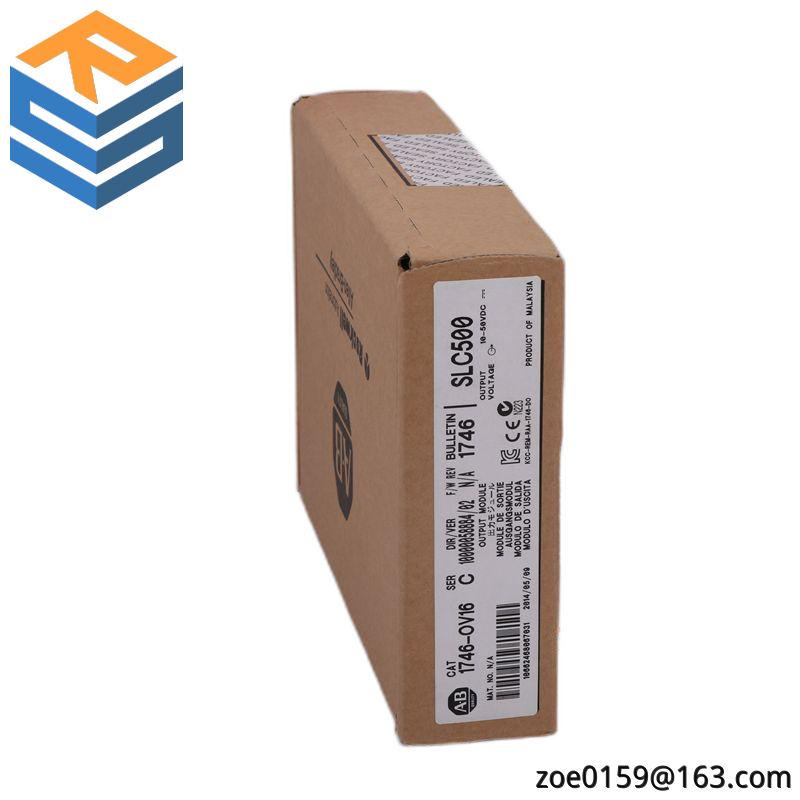

Engineered for precision and reliability, the Allen Bradley 1746-OV16 is an indispensable component in any Allen-Bradley SLC 500 system. This 16-channel discrete output module is designed to deliver consistent performance under a wide range of industrial conditions.
Featuring robust 24VDC input capability, it ensures seamless integration into existing systems, while its 10-50 VDC input voltage range offers flexibility for various industrial power sources.
With a backplane current consumption of 0.270A and a voltage range of 10-50 Volts DC, the 1746-OV16 is optimized for efficient operation and compatibility with diverse hardware configurations.
Each channel supports sink outputs, making it suitable for driving actuators, solenoids, or other devices requiring controlled switching. Its design ensures minimal on-state voltage drop and low off-state leakage current, optimizing energy efficiency and system reliability.
Certified for use in harsh industrial environments, the Allen Bradley 1746-OV16 operates within a temperature range of 0 to 60°C, ensuring dependable performance regardless of ambient conditions. This makes it ideal for applications in manufacturing, process control, and automation sectors.
