Manufacturer:Allen-Bradley
Model Number:1746-OB16E
Module Type:Digital DC Output Module
Number Of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating – Backplane:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation – Communication Circuits:500 VDC
Isolation – Backplane:1500 VAC
Processor Compatibility:SLC 500
Enclosure Type:Open Type
Mounting Type:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95%

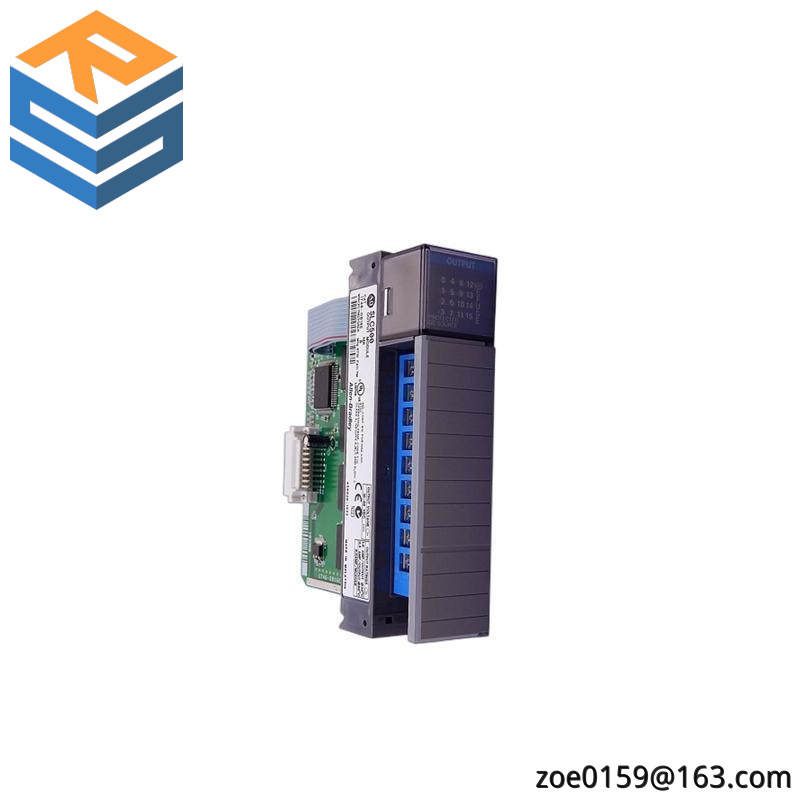

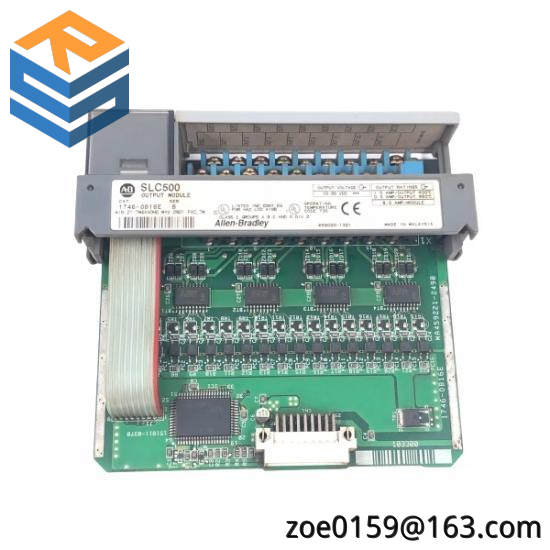

The AB 1746-OB16E Digital Output Module is an essential component in industrial automation systems, providing robust digital outputs for precise control applications. Its 16-channel configuration ensures high-density installation, making it suitable for space-constrained environments.
This module supports a wide input voltage range of 24 VDC and delivers reliable output voltages between 10 and 50 VDC, ensuring consistent performance across various applications. The low on-state voltage drop and minimal off-state leakage current further enhance its reliability and efficiency.
Designed for demanding industrial environments, the AB 1746-OB16E features advanced isolation capabilities, including 500 VDC isolation for communication circuits and 1500 VAC isolation for the backplane. This ensures stable operation and protects against electrical noise and surges.
The open-type enclosure and chassis mounting design allow for easy integration and maintenance, reducing downtime and increasing system uptime. With a temperature rating of 0 – 60°C and humidity tolerance up to 95%, this module can withstand harsh industrial conditions.
Whether you’re automating manufacturing processes, optimizing building systems, or enhancing process control, the AB 1746-OB16E is your go-to solution for reliable and efficient digital outputs.
