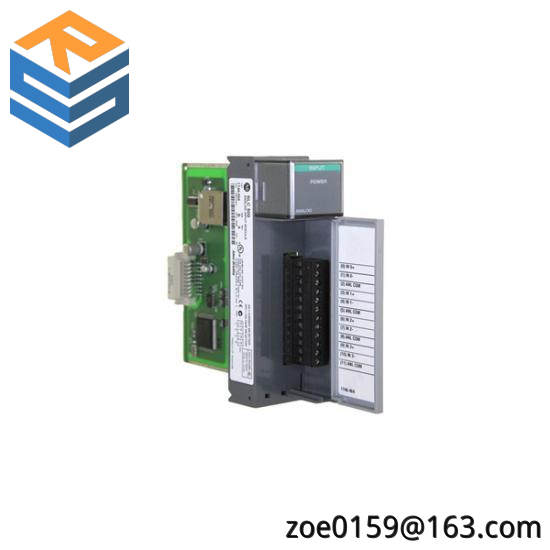

Allen Bradley 1746-NI4/A Analog Input Module – Precision Control Solutions for Industrial Automation

Model Type:SLC500

Number of Channels:4

Input Type:High Resolution

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range for DC voltage:-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

    This module ensures accurate and reliable analog signal conversion, essential for various industrial control applications.

    Designed with Allen Bradley‘s renowned quality, it offers superior performance under diverse operating conditions.

    With its high-resolution capabilities, it provides exceptional detail in signal capture, enabling precise control and monitoring.

    The module supports both common mode and differential inputs, making it adaptable for a wide range of industrial settings.

    Easy integration into existing systems via its robust connection design, facilitating seamless installation and maintenance.
