Number of Channels:8
Analog Input Range:-20 to +20 VDC
Resolution:16-bit
Common Mode Voltage Range:-20 to +20 V
Input Current Range:-30 to +30 mA
Overvoltage Protection:7.5 VAC RMS
Enclosure Type:Open Type
Temperature Range:0°C to 60°C
Operating Humidity:5% to 95% non-condensing

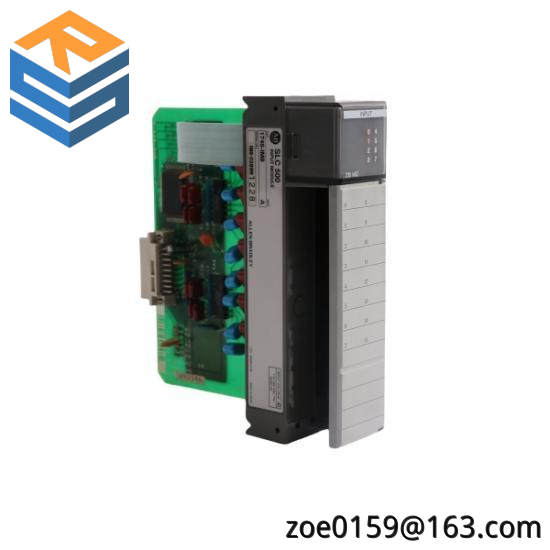

The Allen Bradley 1746-IM8 Input Module is designed for seamless integration into Allen Bradley‘s SLC 500 Series, offering enhanced precision in analog signal acquisition for a variety of industrial applications. With its high-resolution channels and wide-ranging input capabilities, it ensures reliable and accurate data collection.
Featuring an open-type enclosure and backplane current draw of up to 85mA at 24V, this module is built for efficiency and compatibility with various control systems. Its robust isolation and environmental specifications make it suitable for use in harsh industrial environments, ensuring continuous operation under demanding conditions.
The 1746-IM8 Input Module comes equipped with eight green channel status indicators for easy monitoring of each input channel’s operational status. This feature aids in quick identification of potential issues, enhancing system reliability and maintenance efficiency.
Built for long-term durability and performance, this input module is optimized for compatibility with Allen Bradley‘s comprehensive suite of communication protocols, including Ethernet/IP, DH+, DH-485, and RS-232, facilitating seamless integration into existing network infrastructures.
With its combination of advanced technology, high-quality materials, and robust design, the Allen Bradley 1746-IM8 Input Module is an ideal choice for enhancing the accuracy and reliability of industrial automation processes, making it a preferred solution for professionals seeking precision and efficiency in their operations.
