Number of Channels:32
Input Type:Digital
Common Mode Voltage Range:-20 to +20 V
Absolute Input Voltage:±7.5 VDC or ±7.5 VAC RMS (Max.)
Input Range:-20 to +20 mA
Isolation:Backplane: 500 VDC
Environmental Conditions:0°C to 60°C
Enclosure Type:Open Type
Mounting:Panel
Temperature Rating:0°C to 60°C

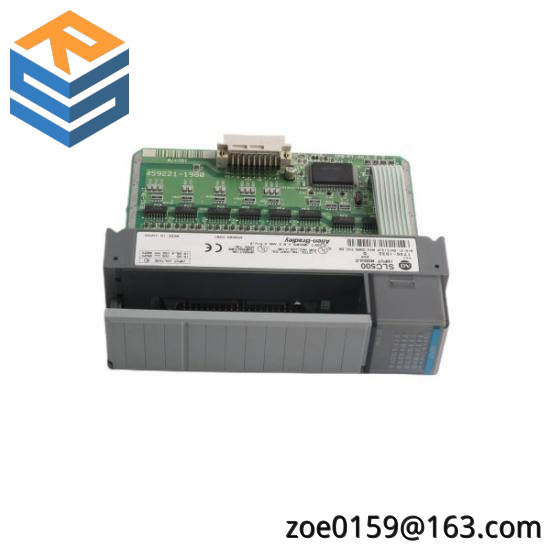

Precision-engineered for unparalleled reliability, the Allen Bradley 1746-IB32/D Input Module ensures seamless integration into your industrial control systems. This module boasts an impressive capacity for 32 digital inputs, making it a powerhouse for signal acquisition.
With an operational voltage range from 5 to 50 VDC and a low on-state voltage drop of just 1.2 V, this module guarantees efficient power usage and reduced signal distortion. The ability to handle 1 mA leakage current off-state ensures robust performance under varying conditions.
Designed for extreme environments, the 1746-IB32/D is rated to operate within a temperature range of 0 to 60°C, and can withstand up to 95% relative humidity without condensation. Its open-type enclosure and chassis mounting method provide flexibility in installation, ensuring compatibility with a wide array of industrial settings.
Equipped with advanced isolation levels for communication circuits and backplane, this module ensures data integrity and protection against electrical interference. Its compatibility with multiple standards and approvals makes it a versatile choice for global applications, ensuring compliance with international safety and quality norms.
For optimal performance, the 1746-IB32/D comes with a standard power consumption of 1.8 W, which translates to minimal energy use. It further offers a high power dissipation rate of 6.1 BTU/hr, ensuring efficient heat management in operationally intensive scenarios.
