Allen-Bradley 1336-BDB-SP34D: High-Performance PCB Gate Drive Board for Industrial Controls

In stock

The ABB 1336-BDB-SP34D PCB Gate Drive Board is specifically designed for high-power applications, ensuring reliable control and precise regulation of power in industrial systems.

Operating Voltage:300V DC

Output Current:30A RMS

Switching Frequency:20kHz

Temperature Range:-40°C to +85°C

Board Dimensions:120mm x 120mm

Material:Aluminum Alloy

Insulation Resistance:≥10MΩ

Protection Level:IP20

    The ABB 1336-BDB-SP34D PCB Gate Drive Board is engineered to handle demanding industrial environments with its robust construction and high-performance specifications.

    Featuring an advanced circuit design, this board ensures smooth and efficient power delivery, making it suitable for complex systems requiring precise control over electrical devices.

    Crafted from high-grade aluminum alloy, the board offers excellent thermal management and durability, enabling it to operate reliably within a wide temperature range.

    Withstanding a minimum insulation resistance of 10MΩ, this drive board provides superior electrical isolation, safeguarding against potential hazards and ensuring system integrity.

    Equipped with a switching frequency of 20kHz, it optimizes power conversion efficiency, minimizing energy loss and enhancing operational performance.

    Certified for IP20 protection, the board is designed to protect against dust and splashing water, ensuring continuous operation in harsh industrial conditions.

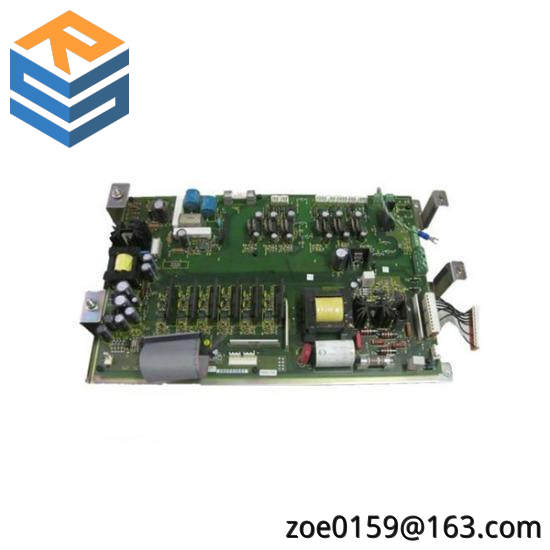

1336-BDB-SP34D PCB Gate Drive Board
