Model:1746-OV8
Module Type:Output Module
Series:SLC 500
Channels:8
Operating Voltage:24 VDC
Output Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Leakage Current:1 mA
Load Current:1 mA
Current Rating per Channel:0.25 A at 60°C
Current Rating per Module:4 A at 60°C
Isolation:Communication circuits: 500 VDC, Backplane: 1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% relative humidity

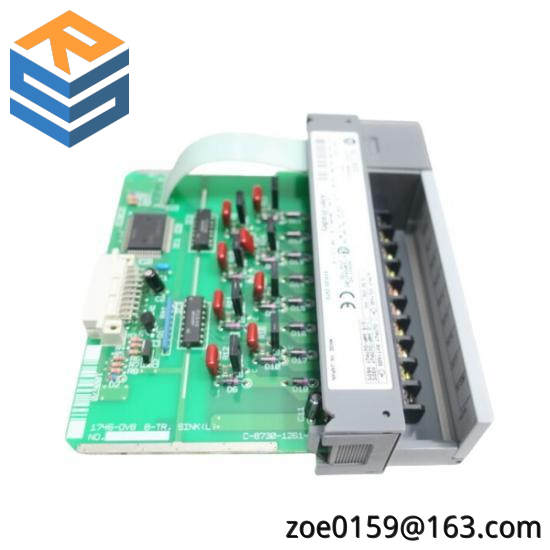

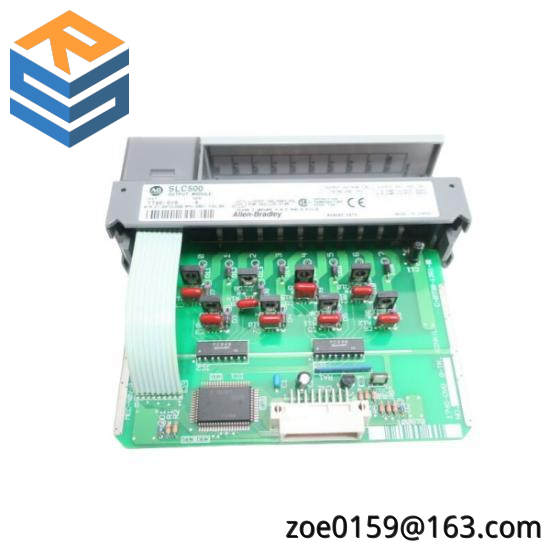

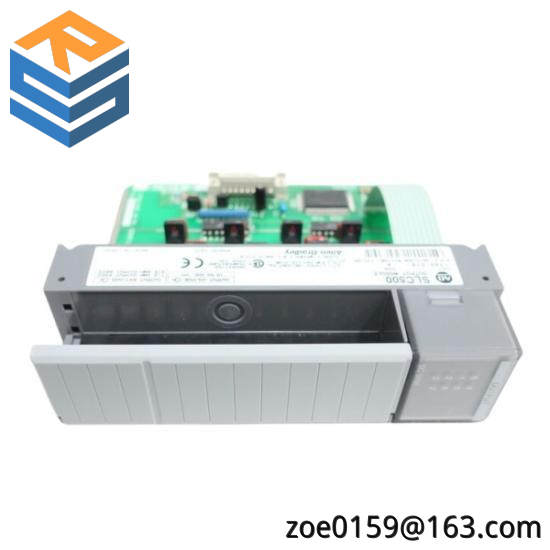

The Allen Bradley 1746-OV8 Output Module for SLC 500 is engineered for high-performance in industrial automation environments. Its compact design ensures seamless integration into existing systems without compromising on functionality.
Featuring eight (8) independent digital output channels, this module is capable of driving a wide range of devices with precision and reliability. It supports a maximum operating voltage of 24 VDC, ensuring compatibility with diverse industrial applications.
With an on-state voltage drop of ≤1.2 V and off-state output leakage of ≤1 mA, the 1746-OV8 delivers exceptional control over digital outputs, minimizing energy consumption and enhancing system efficiency.
The module’s robust isolation capabilities protect against electrical disturbances, safeguarding the integrity of control systems. Whether interfacing with communication circuits or the backplane, the Allen Bradley 1746-OV8 ensures reliable signal transmission.
Designed for operation within a temperature range of 0°C to 60°C, this output module is built to withstand harsh industrial conditions. Its open-type enclosure allows for easy installation and maintenance, making it a practical choice for various industrial settings.
