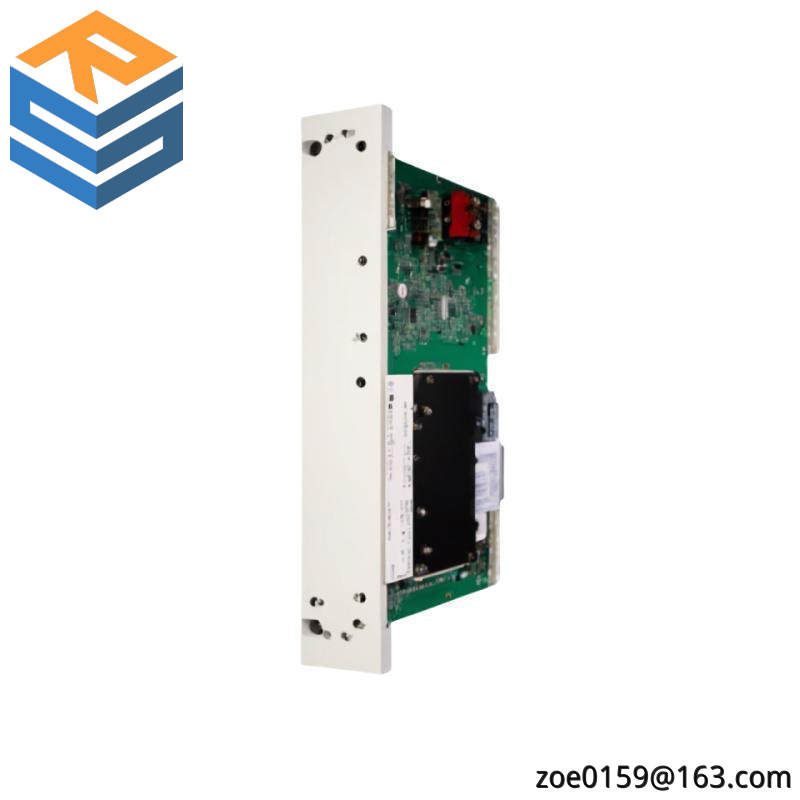

ABB YPQ103C – Advanced Connection Unit for Analog Input Board

Type:Connection Unit

Model:YPQ103C

Application:Analog Input Board

Manufacturer:ABB

Dimensions (WxHxD):120mm x 70mm x 30mm

Weight:0.2kg

Power Consumption:Max 5W

Operating Temperature:-20°C to +55°C

Storage Temperature:-40°C to +70°C

Communication Protocol:Modbus RTU, CANopen

Environmental Standards:CE, UL, CSA, TUV

    Integrating the ABB YPQ103C into your industrial automation setup guarantees unparalleled precision and reliability. This connection unit is specifically crafted for analog input requirements, ensuring accurate data collection from sensors and devices.

    Featuring a versatile RS-485 connection type, the YPQ103C supports various communication protocols, making it compatible with a wide range of equipment. Its 8 input channels provide ample capacity for diverse applications.

    With an operational range of -10V to +10V, this unit can handle a broad spectrum of sensor outputs, ensuring compatibility across different industrial environments. The high sampling rate of 1000 samples per second ensures real-time data processing without compromising on accuracy.

    The ABB YPQ103C is designed to withstand harsh conditions. It operates within a temperature range of -20°C to +60°C, and can be stored at temperatures between -40°C to +85°C, making it ideal for use in extreme environments.

    For ease of installation and maintenance, the YPQ103C measures 145mm x 115mm x 70mm and weighs only 0.4kg, providing a compact yet powerful solution. This connection unit is the perfect choice for enhancing the efficiency and reliability of your industrial control systems.
