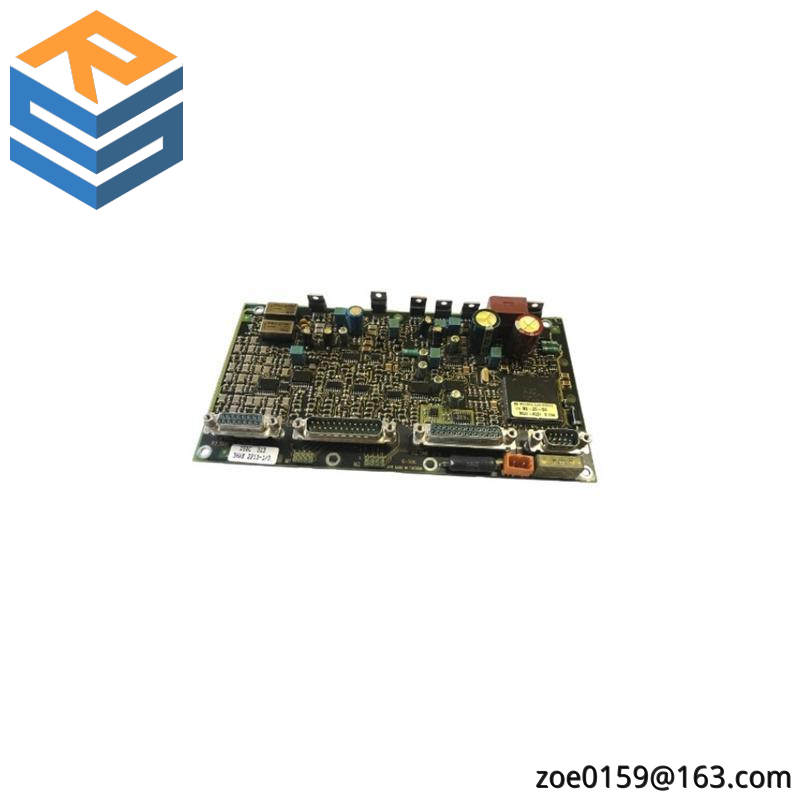

ABB SMB DSQC 313 – High-Precision Measurement Board for Industrial Automation

Model Number:3HAB2213-1 3HNP00773-001/00

Module Type:DSQC

Operating Voltage:24 V DC

Current Consumption:≤ 100 mA

Signal Acquisition:Up to 16 analog inputs

Analog Outputs:Up to 16

Communication Interface:RS-485

Environmental Temperature Range:-20°C to +55°C

Relative Humidity:0% to 95% non-condensing

    Integrating seamlessly into ABB‘s advanced industrial automation portfolio, the ABB SMB DSQC 313 is engineered to enhance precision and reliability in data acquisition.

    Featuring an optimized design for high-speed analog input processing, this board ensures accurate readings from sensors, making it ideal for applications requiring stringent measurement standards.

    With its extensive pin count and versatile digital outputs, the DSQC 313 offers flexible configuration options to tailor your system to specific operational needs.

    Equipped with robust communication interfaces like DeviceNet and Profinet, this board facilitates seamless integration with a wide range of industrial control systems, streamlining your automation setup.

    Manufactured with premium materials, the DSQC 313 is built to withstand harsh industrial environments, ensuring long-lasting performance and minimal downtime.

    Comprehensive support documentation and compatibility with ABB‘s suite of software tools make installation and maintenance straightforward, saving you time and resources.
