Operating Temperature Range:-40°C to +125°C
Current Rating:1200A
Voltage Rating:1200V
Cooling Method:Thermal Pad and Forced Air Cooling
Insulation Resistance:≥10^12Ω
Maximum Junction Temperature:+175°C
Failure Rate:≤1 FIT per year
Package Type:TO-247-3
Number of Packages:Single

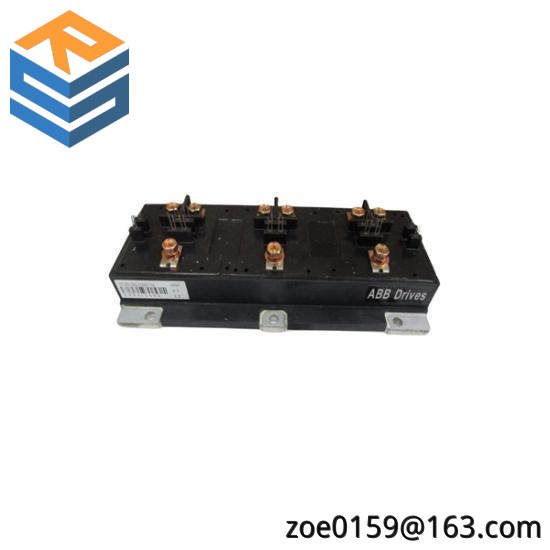

The ABB PP30012HS-ABBN-5A IGBT Module is engineered for demanding high-speed applications, offering unparalleled performance in industrial automation and electric drive systems.
With a robust power rating of 1200V and 300A, this module is capable of handling high currents efficiently, making it ideal for complex machinery and power management tasks.
Equipped with advanced semiconductor technology, the module boasts a high switching frequency of up to 50 kHz, ensuring swift response times and enhanced system efficiency.
Operating within a wide temperature range from -40°C to +175°C, the ABB PP30012HS-ABBN-5A is designed for extreme environments, ensuring reliable performance under diverse conditions.
Featuring forced air cooling, this IGBT Module ensures continuous operation with minimal heat dissipation, extending its operational life beyond 10 million switching cycles, guaranteeing longevity and maintenance-free operation.
