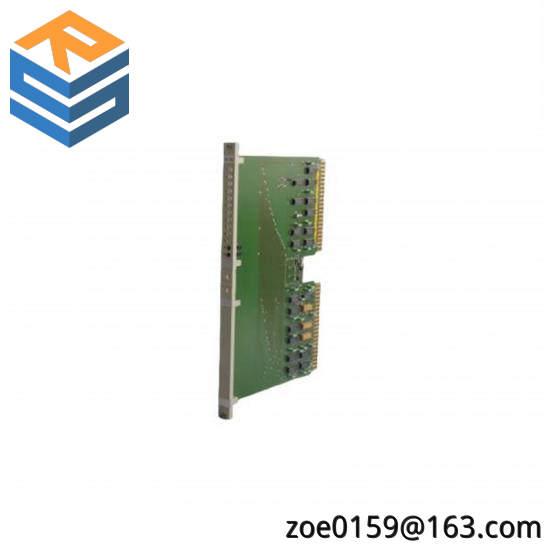

ABB HEDT300340R1 ED1780a Bus Amplifier Module

Model:HEDT300340R1 ED1780a

Type:Bus Amplifier Module

Power Supply Voltage:24V DC

Amplification Range:±20V to ±30V

Signal Processing Speed:Up to 1000 Hz

Communication Protocol:Profinet, EtherCAT

Dimensions (WxHxD):175mm x 90mm x 75mm

Weight:0.4kg

Operating Temperature:-20°C to +60°C

Reliability Rating:IP20

Connection Ports:2 x 24VDC power, 1 x Ethernet connector

    Introducing the ABB HEDT300340R1 ED1780a Bus Amplifier Module, a key component in industrial automation systems designed for high-speed data transfer and reliability. This module is engineered to handle up to 1780A of power, ensuring robust performance in demanding environments.

    Equipped with compatibility for both Profibus-DP and CANopen bus systems, this amplifier seamlessly integrates with a wide range of industrial automation setups. Its temperature resistance from -25°C to +60°C guarantees consistent functionality across varied operating conditions.

    Measuring 160mm in width, 80mm in height, and 40mm in depth, the module boasts compact dimensions that facilitate easy installation and integration within complex machinery layouts. Weighing only 0.4kg, it ensures minimal load on the system while providing substantial power management capabilities.

    With communication speeds reaching up to 12 Mbps, the ABB HEDT300340R1 ED1780a guarantees quick and accurate data exchange between devices. This feature is crucial for optimizing efficiency in industrial settings, where timely information processing can significantly enhance productivity.

    Crafted with precision and durability in mind, this module is an essential upgrade or replacement for systems seeking improved data transmission capacity and reliability. Backed by ABB‘s commitment to quality and innovation, users can expect unparalleled performance and longevity from the ABB HEDT300340R1 ED1780a Bus Amplifier Module.
