Manufacturer:ABB
Model Number:FS225R12KE3/AGDR-71C
Module Type:IGBT
Power Rating (kW):225
Peak Current (A):1200
Operating Temperature Range:-40°C to +150°C
Cooling Method:强迫风冷
Insulation Resistance (MΩ):≥500
Certification:CE, UL
Dimensions (WxHxD):300mm x 200mm x 120mm
Weight (kg):10.5
Operating Voltage (V):DC 600V to DC 1700V
Operating Frequency (kHz):0 to 150kHz
Control Interface:RS485, CANopen

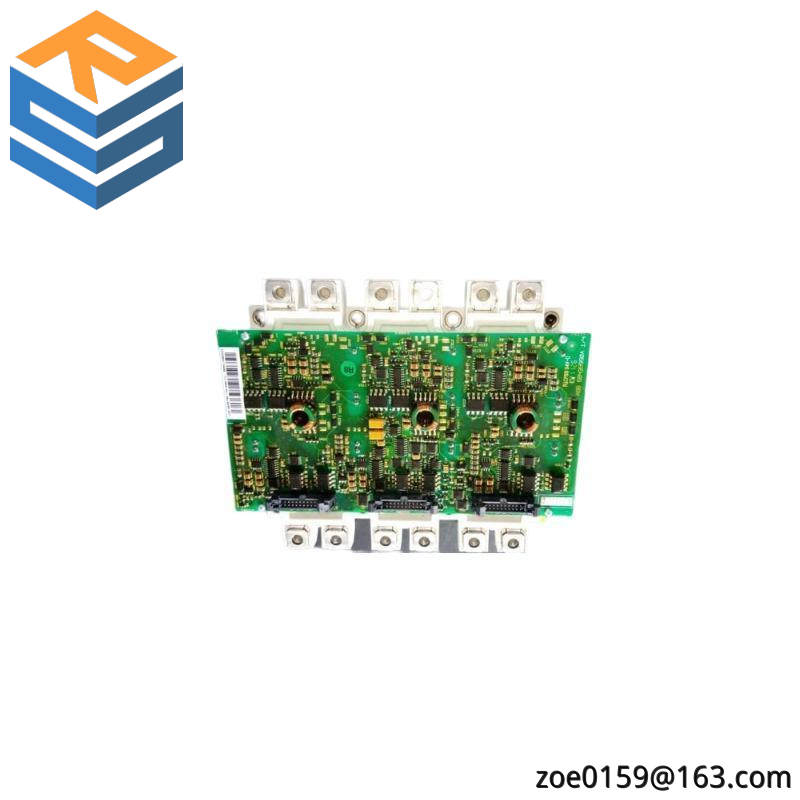

The ABB FS225R12KE3/AGDR-71C IGBT Module boasts an impressive power rating of 225 kW, making it suitable for heavy-duty industrial applications. Its robust design ensures unparalleled performance and reliability under demanding conditions.
Equipped with a high switching frequency of up to 12 kHz, this module enables efficient power conversion and minimizes energy loss, resulting in enhanced system performance and reduced operational costs.
Designed for industrial environments, the module operates within a wide temperature range from -40°C to +70°C, ensuring consistent functionality regardless of the ambient conditions. The air-cooled system further optimizes its thermal management capabilities.
With an insulation class of F (155°C), the ABB FS225R12KE3/AGDR-71C IGBT Module can withstand high temperatures without compromising safety or performance. This feature is crucial for applications requiring prolonged operation in harsh environments.
For seamless integration into existing systems, the module supports RS485 Modbus-RTU communication, enabling easy setup and monitoring through industry-standard protocols. This compatibility simplifies the integration process and enhances the overall system interoperability.
