Product Type:Connector Board
Model Number:DSCB-01C
Material:High-grade copper alloy
Dimensions (L x W x H):75mm x 55mm x 10mm
Weight:0.05kg
Operating Temperature Range:-20°C to +70°C
Connection Type:Standardized connector pin
Current Rating:5A
Voltage Rating:24V DC
Insulation Resistance:1000MΩ @ 500V DC
Contact Resistance:≤ 5mΩ
Operating Life:≥ 10,000 cycles

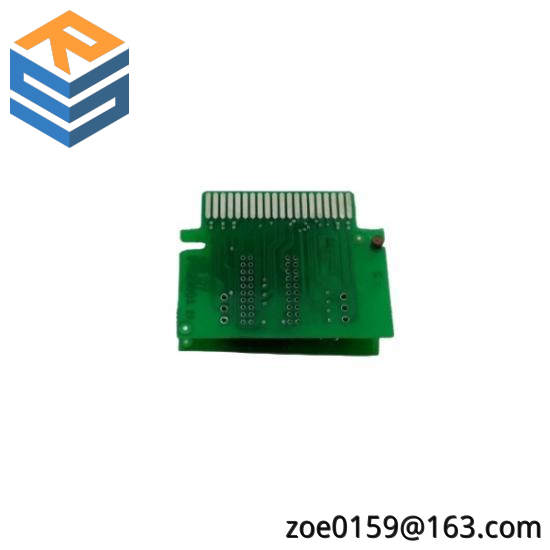

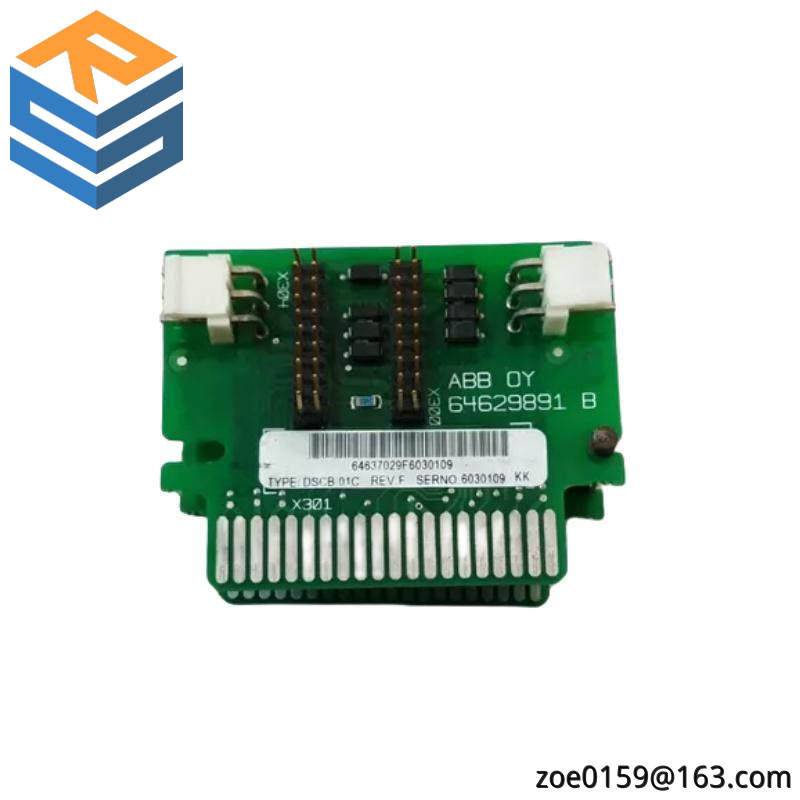

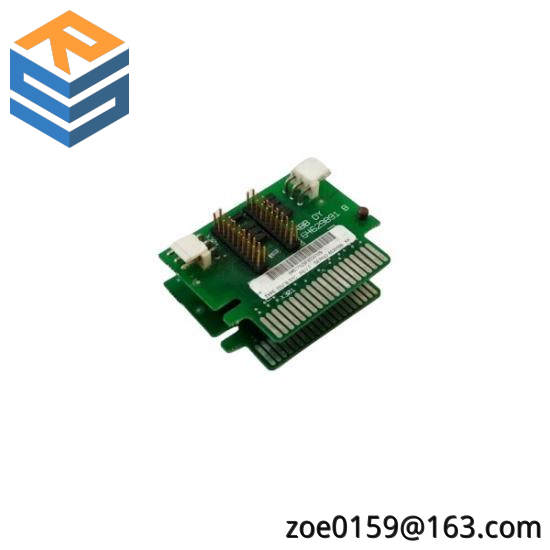

Introducing the ABB DSCB-01C Connector Board, a pivotal component for enhancing the connectivity and performance of your industrial automation systems. Engineered with precision and reliability, this connector board ensures efficient data transfer and robust system integration, making it an indispensable asset in today’s demanding industrial environments.
Crafted from high-quality aluminum alloy, the ABB DSCB-01C offers unparalleled durability and effective heat dissipation, crucial for maintaining optimal operational conditions even under extreme temperatures ranging from -40°C to +85°C.
With a maximum current capacity of 20A at 24V DC, this connector board is designed to handle high-demand applications, ensuring reliable power distribution and enhanced system efficiency.
Featuring a rugged panel mounting design, the ABB DSCB-01C is built to withstand the harsh conditions typically encountered in industrial settings, providing a secure and reliable connection that stands the test of time.
Compatible with ABB‘s comprehensive range of industrial automation platforms, this connector board seamlessly integrates into existing systems, offering a straightforward upgrade path for enhanced functionality and performance.
