Operating Voltage:600V
Peak Inverse Voltage:860V
Forward Current:1.5A
Switching Frequency:20kHz
Reverse Recovery Time:20ns
Package Size:SMD
Temperature Range:-40°C to +175°C
Lead Count:6
Mounting Type:Surface Mount Technology

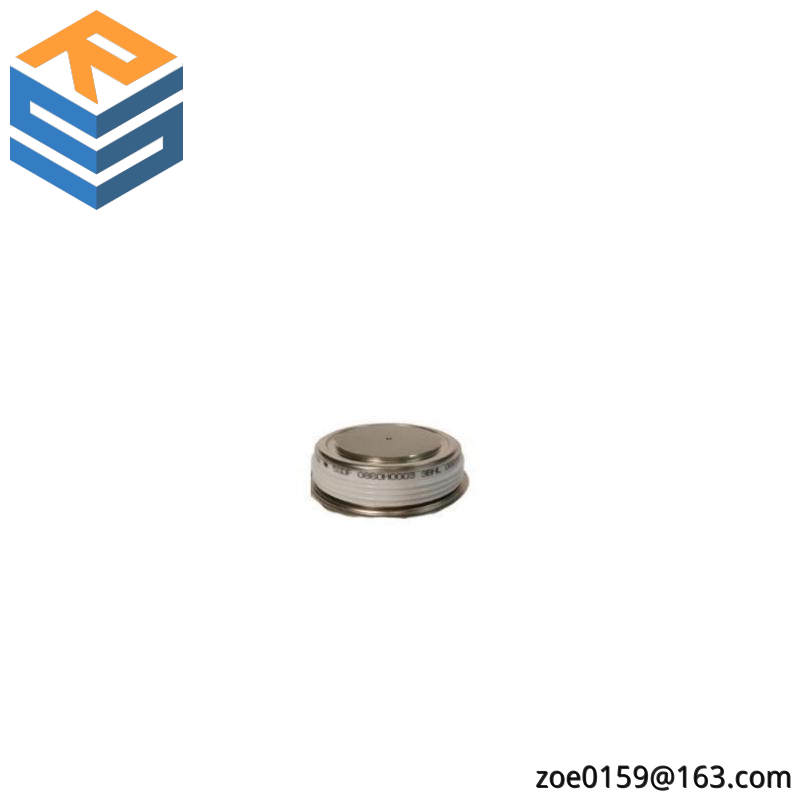

The ABB 5SDF0860H0003 3BHL000397P0001 Fast Recovery Diode is engineered with advanced semiconductor technology to provide exceptional efficiency and durability in heavy-duty industrial applications. This diode is characterized by its rapid recovery time, which significantly reduces the energy losses typically associated with traditional diodes, thereby enhancing system performance.
This high-performance diode is capable of handling peak repetitive reverse voltages up to 1200V, making it suitable for use in a wide range of power management systems where robustness against voltage spikes is critical. Its low reverse recovery time ensures minimal power loss during switching operations, contributing to improved overall system efficiency.
Operated within an extended temperature range of -55°C to +175°C, this diode is designed for use in harsh industrial environments, ensuring reliable operation under varying conditions. The compact dimensions (3.9 x 7.9 x 2.2 mm) allow for efficient space utilization in circuit designs, while the four lead configuration simplifies assembly and integration.
Manufactured using high-quality silicon material, the diode offers superior electrical and thermal conductivity properties, providing a longer lifespan and enhanced reliability compared to alternative materials. Its construction ensures excellent thermal management, facilitating effective heat dissipation to prevent overheating and maintain optimal operational conditions.
Designed for seamless integration into existing or new power management systems, the ABB 5SDF0860H0003 3BHL000397P0001 Fast Recovery Diode is compatible with various industry standards and protocols, ensuring compatibility and ease of deployment. It is ideal for applications requiring high-speed switching and power handling capabilities, such as motor control, power supplies, and renewable energy systems.
