Material:High-grade brass alloy
Connector Type:Multipole connector set (X1-X4)
Number of Poles:10
Operating Temperature Range:-40°C to +85°C
Insulation Resistance:≥10^9 Ohms
Current Rating:10A
Voltage Rating:Up to 300V DC / 500V AC
Wire Size:0.1mm² to 1.5mm²
Connection Method:Spring-clamp terminals
Installation Type:Panel mount
Environmental Standards:IEC 60947-5-1, IEC 61010-1

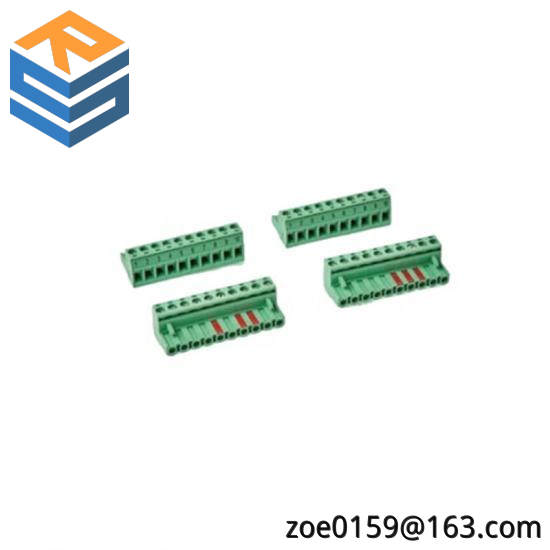

This ABB 3HAB9715-1 Multipole connector boasts a compact yet robust design, ideal for complex electrical installations in industries requiring high-reliability connections. The connector features ten pins arranged in four groups, each capable of handling up to 10A, making it suitable for a wide range of applications from automation systems to power distribution networks.
Manufactured using high-grade copper for superior conductivity and high-impact plastic for durability, this connector ensures reliable performance under extreme environmental conditions. With an insulation rating of IP67, it offers protection against dust and water ingress, ensuring uninterrupted operation even in challenging environments.
The connector’s operating temperature range of -40°C to +85°C allows it to function reliably in both freezing and scorching conditions, making it a perfect choice for outdoor or industrial settings. It can withstand voltage up to 500V AC/DC, providing a safe and stable connection for high-power applications.
Designed for ease of installation and maintenance, the ABB 3HAB9715-1 connector features a quick-lock mechanism for easy assembly, reducing downtime during installation or maintenance. The modular design allows for flexible configurations, accommodating different wiring needs without compromising on performance.
Compliant with international safety standards such as IEC 60309, UL, and CE, this connector meets rigorous quality and safety requirements. Its compatibility with various wiring systems ensures seamless integration into existing electrical setups, enhancing system reliability and efficiency.
