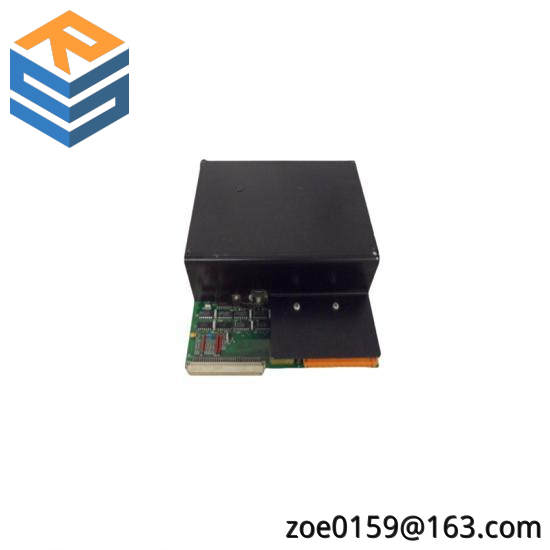

ABB 3HAA3563-AGA/1 Servo Rectifier Power Board

Model Number:3HAA3563-AGA/1

Brand:ABB

Type:Servo Rectifier Power Board

Application:Precision Control Systems

Input Voltage:230V AC / 120V AC

Output Voltage:DC 24V

Current Rating:16A

Operating Temperature Range:-20°C to +60°C

Dimensions:170mm x 110mm x 50mm

Weight:1.2kg

    The ABB 3HAA3563-AGA/1 Servo Rectifier Power Board is designed to deliver exceptional performance in servo drive applications. Its robust construction and high-efficiency design ensure stable power supply and precise current regulation, which are crucial for achieving high-precision movements in industrial automation processes.

    Featuring a compact footprint and lightweight design, this power board seamlessly integrates into existing machinery, minimizing installation space and facilitating easy maintenance. It is engineered with advanced thermal management to maintain optimal operating temperatures, ensuring reliability under varying environmental conditions.

    With a 24 VDC power rating and 10 A input/output current capabilities, the board provides ample power for driving servo motors and actuators, making it suitable for a wide range of applications from robotics to precision machinery. The inclusion of comprehensive safety certifications, including UL and CE, guarantees compliance with international standards, ensuring a safe and efficient operation.

    The modular design of the ABB 3HAA3563-AGA/1 allows for quick and easy replacement or upgrade, minimizing downtime during maintenance operations. This feature is particularly advantageous in manufacturing environments where downtime can significantly impact productivity.

    Furthermore, the product is equipped with an advanced control algorithm that optimizes energy consumption, reducing operational costs without compromising on performance. Its compatibility with various ABB servo drives ensures seamless integration within existing systems, enhancing overall system performance and efficiency.
