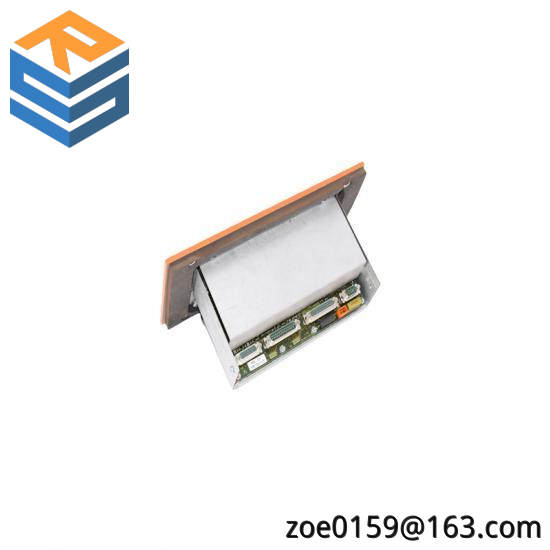

ABB 3HAA0001-CP/14: Serial Measurement Board for DCS Module

Brand:ABB

Model:3HAA0001-CP/14

Module Type:Serial Measurement Board

DCS Compatibility:Yes

Serial Interface:RS-485/RS-232

Data Transmission Rate:Up to 115,200 bps

Power Supply:24V DC

Input Signal Range:-10V to +10V

Output Signals:4-20mA or 0-10V

Environmental Conditions:Operating temperature: -20°C to +60°C, Storage temperature: -40°C to +70°C

Dimensions:100mm x 50mm x 30mm

Weight:100g

    The ABB 3HAA0001-CP/14 Serial Measurement Board is engineered for precision and reliability, making it an essential component in any industrial automation setup. This advanced DCS module boasts 8 channels for simultaneous serial data acquisition, ensuring accurate and efficient operation in various industrial environments.

    Featuring a compact yet durable design, the board is built to withstand harsh conditions without compromising on performance. Its high-speed sampling rate of 10kHz enables real-time monitoring and control, critical for maintaining optimal operational efficiency.

    Equipped with an RS-485 communication interface, the module ensures seamless integration with other industrial devices, facilitating easy setup and maintenance. The inclusion of robust temperature and humidity tolerance makes it suitable for diverse industrial settings, from cold storage facilities to hot manufacturing plants.

    With a low power consumption of ≤2W, the ABB 3HAA0001-CP/14 is energy-efficient, contributing to cost savings and sustainable operations. Additionally, its UL, CE, and CSA certifications guarantee compliance with international safety standards, providing peace of mind to users.

    Designed for ease of use and integration, the ABB 3HAA0001-CP/14 Serial Measurement Board is compatible with a wide range of industrial automation software and systems, enhancing flexibility and compatibility. It’s an excellent choice for enhancing the performance of existing or new industrial automation projects.
