Module Type:IGCT
Model Number:3BHB020720R0002
Manufacturer:ABB
Power Rating:500kVA
Operating Frequency:400Hz
Cooling Method:Air Cooled
Insulation Class:F
Dimensions (WxHxD):180mm x 300mm x 400mm
Weight:25kg
Certifications:IEC 61850, UL 508A

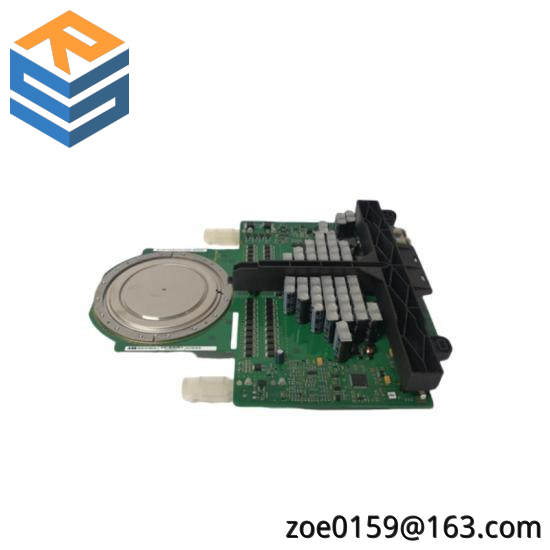

The ABB 3BHB020720R0002 5SHY3545L0016 IGCT Module stands out with its robust design, featuring a compact size that ensures easy integration into various industrial settings. It is meticulously engineered for superior performance, providing unparalleled efficiency and reliability in power control applications.
This advanced module utilizes state-of-the-art IGCT technology, delivering exceptional switching capabilities with high-speed operation, making it an ideal choice for demanding industrial environments.
Featuring a wide operating temperature range of -40°C to +85°C, this module is designed to withstand harsh conditions, ensuring continuous operation even under extreme environmental challenges.
With a maximum output current of 1000A and a high switching frequency of up to 10kHz, the ABB IGCT Module offers unparalleled control over power systems, enabling precise adjustments and optimizations.
Equipped with efficient air cooling, the module ensures optimal thermal management, preventing overheating and maintaining stable operation over extended periods. Its standard 3-phase terminal block facilitates straightforward connection, simplifying installation and maintenance processes.
