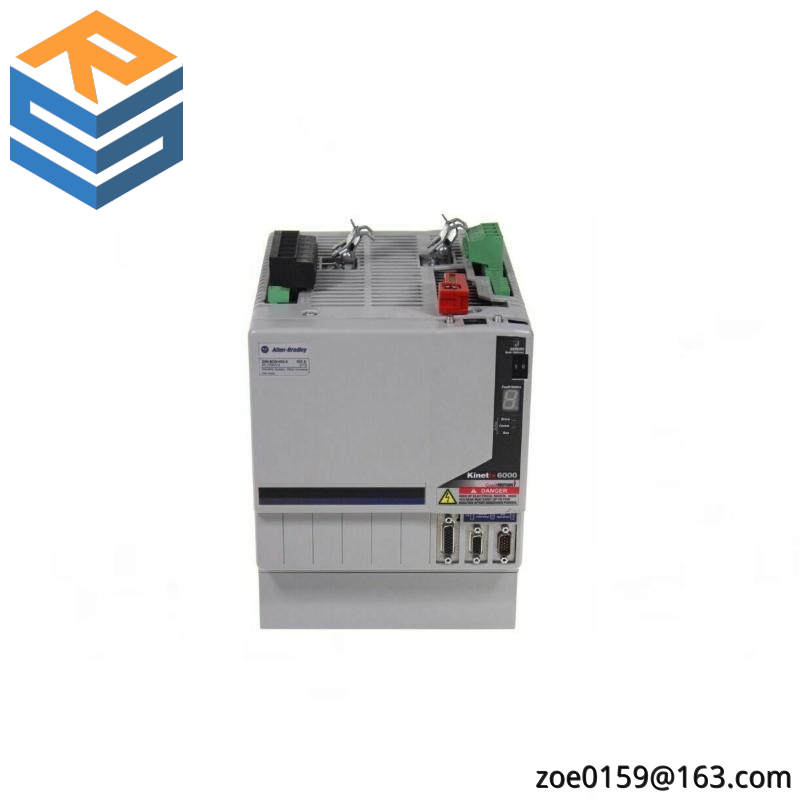

AB 2094-BC04-M03-M: Precision Motion Control Module, Integrated Axis Solution

Product Type:Integrated Axis Module

Model Number:AB 2094-BC04-M03-M

Class Voltage:400VAC

Continuous Current:21.2 A

Peak Current:53.0 A

Efficiency:98%

Short-Circuit Current Rating:200,000 A (rms)

Safe Torque-off Feature:Integrated

Operating Temperature Range:0…50 °C (32…122 °F)

Relative Humidity:5…95% noncondensing

Altitude Rating:Up to 3281 ft (1000 m) with derating

Vibration Rating:5…55 Hz @ 0.35 mm (0.014 in.) double amplitude

    Engineered for maximum efficiency and reliability, the Allen-Bradley AB 2094-BC04-M03-M is an integral part of the Kinetix Multi-Axis Drive family, offering seamless integration with a wide range of industrial applications.

    This module is designed to host major field connections including Contactor enable (CED) connector, DC bus/AC input power (IPD) connector, Control power (CPD) connector, Motor power (MP) connector, Motor/resistive brake (BC) connector, and I/O (IOD) connector, ensuring comprehensive functionality.

    Featuring a robust and compact design, the AB 2094-BC04-M03-M is capable of interfacing with both rotary and linear motors through feedback cables, enhancing its versatility in various automation scenarios.

    With an impressive efficiency of 98%, this integrated axis module ensures minimal energy loss, contributing to cost savings and environmental sustainability in industrial operations.

    Equipped with a Safe Torque-off feature, the module guarantees safety during unexpected shutdowns or maintenance procedures, minimizing downtime and ensuring workplace safety.
