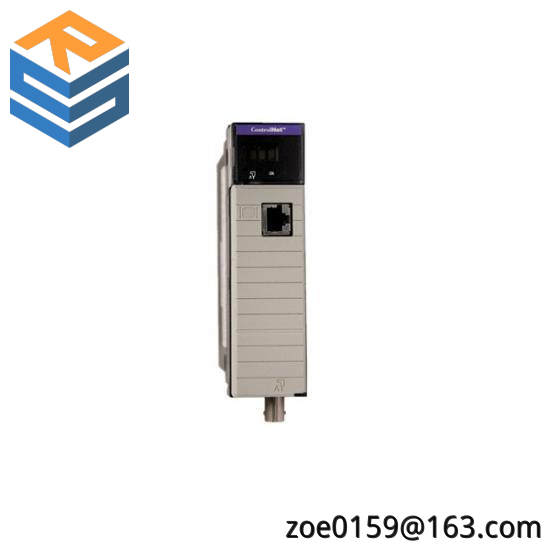

AB 1756-CNB/E CNET ControlNet Bridge Module

Model Number:1756-CNB/E

Manufacturer:Allen Bradley

Module Type:CNET ControlNet Bridge

Communication Protocol:ControlNet

Redundancy:Yes

Network Compatibility:ControlLogix Systems

Enclosure Type:Ruggedized for Industrial Environments

Environmental Conditions:-40°C to +70°C Operating Temperature

Power Consumption:Less than 5 Watts

Mounting:Panel-Mountable

Dimensions:95.2mm x 95.2mm x 28.4mm

Weight:Approximately 100g

Input/Output Capacity:N/A (Bridge Module)

Protocol Compatibility:ControlNet, DeviceNet, EtherNet/IP

    The Allen-Bradley 1756-CNB/E CNET ControlNet Bridge Module is designed for seamless integration into advanced industrial control systems, facilitating real-time communication between various devices. This module supports both DeviceNet and ControlNet protocols, ensuring compatibility and reliability across diverse automation environments.

    Equipped with an extensive amperage rating, this bridge module can handle up to 1600mA, making it suitable for a wide range of applications that require robust data transfer capabilities. It operates efficiently within a broad voltage range of 12 to 48 volts DC, catering to different power supply needs in industrial settings.

    Withstanding temperatures from -40°C to +70°C, this module ensures continuous operation in harsh industrial conditions. Its IP20 enclosure provides basic protection against dust and splashes, enhancing durability and reliability in manufacturing environments.

    Compliance with international RFI protection standards ensures minimal interference in radio frequency environments, maintaining high-quality communication even in noisy industrial spaces. This feature is crucial for maintaining system integrity and preventing data loss during data transmission.

    Compact yet powerful, the Allen-Bradley 1756-CNB/E CNET ControlNet Bridge Module measures 176mm x 113mm x 80mm, making it easy to install in confined spaces. Its lightweight design at approximately 0.3 kg facilitates quick setup and minimal maintenance requirements, optimizing productivity in the manufacturing line.
