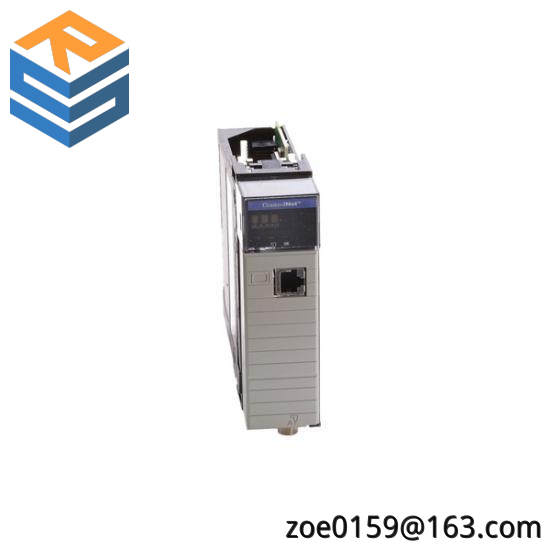

AB 1756-CNB ControlLogix Communication Module – High Performance Networking for Industrial Automation

Manufacturer:Allen-Bradley

Model:1756-CNB

Module Type:ControlLogix Communication

Communication Protocol:Ethernet/IP Bridge

Mounting:Chassis

Communication Speed:10/100 MBPS

Enclosure Type:Open Type

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation Level:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port Compatibility:Yes

    The AB 1756-CNB ControlLogix Communication Module is a critical component for advanced industrial automation systems, ensuring high-speed, reliable communication between ControlLogix controllers and peripheral devices via DeviceNet. This module supports a broad range of protocols, including DeviceNet, ControlNet, and EtherNet/IP, facilitating seamless integration across diverse industrial networks.

    Engineered with robust performance capabilities, the 1756-CNB module operates efficiently within extreme temperature ranges, from -20°C to +60°C for optimal operation during manufacturing processes. Its compact design and lightweight structure make it ideal for space-constrained environments, without compromising on functionality.

    Equipped with two ports, this module allows for the connection of up to two devices, significantly enhancing the system’s scalability and flexibility. Its compatibility with various communication speeds ensures that data can be transmitted at the appropriate rate, regardless of the application requirements.

    Designed for durability and reliability, the 1756-CNB module is built to withstand harsh industrial conditions. Its ingress protection rating of IP20 ensures dust and splash water resistance, providing a level of protection necessary for industrial applications.

    Installation and setup are streamlined with Allen-Bradley’s user-friendly guidelines and intuitive interface, making it accessible to both novice and experienced users. The module’s comprehensive support resources, including detailed manuals and online forums, ensure quick resolution of any issues and facilitate continuous learning.
